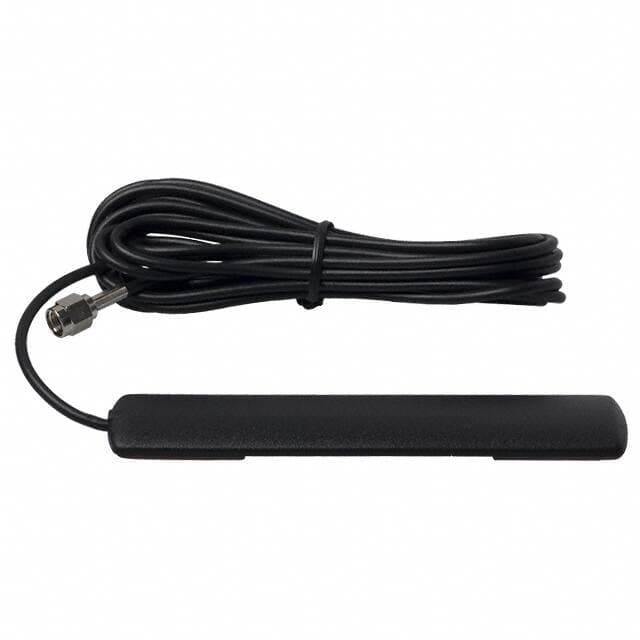

Linx Technologies Inc. ANT-DB1-VDP-TNC

Manufacturer No:

ANT-DB1-VDP-TNC

Manufacturer:

Linx Technologies Inc.

Package:

Description:

3 Bands Flat Bar Wide B Adhesive TNC 892MHz 1.85GHz 2.45GHz -1.8dBi, -1.7dBi, -1.3dBi Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-DB1-VDP-TNC information

Linx Technologies Inc. ANT-DB1-VDP-TNC technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-DB1-VDP-TNC.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Adhesive

Packaging
Bulk

Series
VDP

Published
2012

Feature
Cable - 3m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
TNC

Frequency
910MHz

Impedance
50Ohm

Cable Length
248.92mm

Bandwidth
200MHz

Gain
-1.8dBi, -1.7dBi, -1.3dBi

Frequency Range
824MHz~960MHz 1.71GHz~1.99GHz 2.4GHz~2.48GHz

Antenna Type
Flat Bar

VSWR
1.5, 1.9, 1.9

Number of Bands
3

Frequency Group
Wide B

Frequency (Center/Band)
892MHz 1.85GHz 2.45GHz

Height
115.0112mm

Length
115.062mm

Width
22.098mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-DB1-VDP-TNC.

Datasheets:

linxtechnologiesinc-antdb1vdptnc-datasheets-1965.pdf

ANT-DB1-VDP-TNC Overview

It is suitable for general RF Antennas when it is set to Adhesive.There is a Antenna RF in the VDP series.Bulk is the solid enclosure in which RF modulator is packaged.

ANT-DB1-VDP-TNC Features

With Adhesive
VDP series

ANT-DB1-VDP-TNC Applications

There are a lot of Linx Technologies Inc.
ANT-DB1-VDP-TNC RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
