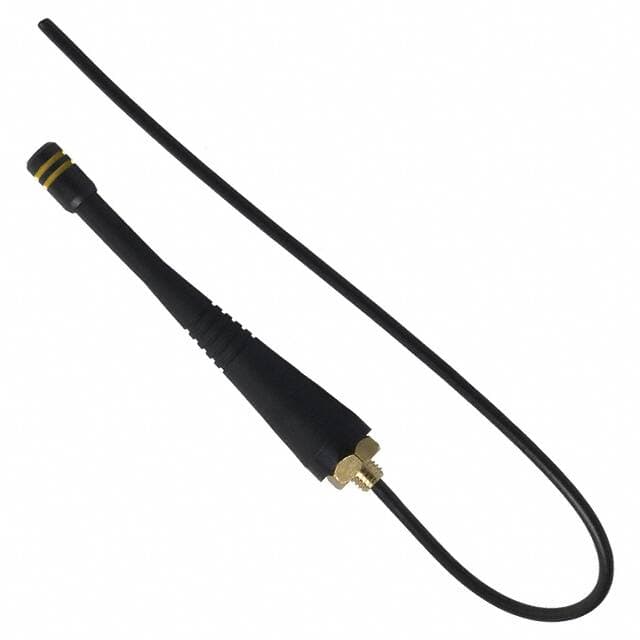

Linx Technologies Inc. ANT-916-PW-QW

Manufacturer No:

ANT-916-PW-QW

Manufacturer:

Package:

Description:

1 Bands Whip, Straight UHF 300MHz~1GHz Panel Mount Solder 915MHz 1.8dBi Bulk 3.150 80.00mm ISM, LoRa, Sensor Networks, SigFox

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-916-PW-QW information

Linx Technologies Inc. ANT-916-PW-QW technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-916-PW-QW.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
PW

Published
2008

Feature
Cable - 216mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Applications
ISM, LoRa, Sensor Networks, SigFox

Frequency
916MHz

Impedance
50Ohm

Cable Length
215.9mm

Bandwidth
100MHz

Gain
1.8dBi

Frequency Range
865MHz~965MHz

RF Family/Standard
General ISM

Antenna Type
Whip, Straight

VSWR
1.9

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
915MHz

Diameter
7.62mm

Length
74.2mm

Height (Max)
3.150 80.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-916-PW-QW.

Datasheets:

linxtechnologiesinc-ant916pwqw-datasheets-1495.pdf

ANT-916-PW-QW Overview

The Panel Mount makes it ideal for general RF Antennas.The Antenna RF is from the PW line.Packaged in solid enclosures, this RF modulator has a Bulk rating.Having a Panel makes it suitable for most RF ic designs.

ANT-916-PW-QW Features

With Panel Mount
PW series

ANT-916-PW-QW Applications

There are a lot of Linx Technologies Inc.
ANT-916-PW-QW RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
