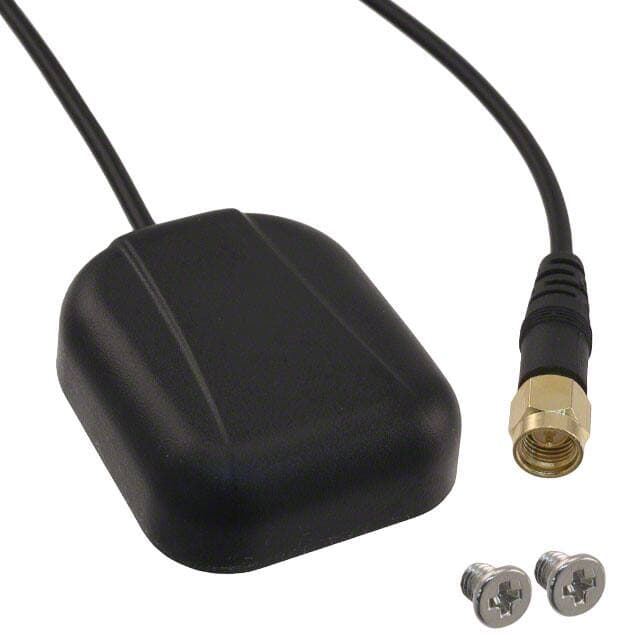

Linx Technologies Inc. ANT-GPS-SH-SMA
Linx Technologies Inc. ANT-GPS-SH-SMA

Linx Technologies Inc. ANT-GPS-SH-SMA

Manufacturer No:

ANT-GPS-SH-SMA

Manufacturer:

Linx Technologies Inc.

Package:

SMA

Description:

1 Bands Module UHF 1GHz~2GHz Magnetic, Chassis Mount SMA Male 1.575GHz 5dB Bulk 0.492 12.50mm GPS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-GPS-SH-SMA information

Linx Technologies Inc. ANT-GPS-SH-SMA technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-GPS-SH-SMA.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Chassis Mount
  • Mounting Type
  • Magnetic, Chassis Mount
  • Package / Case
  • SMA
  • Packaging
  • Bulk
  • Series
  • SH
  • Published
  • 2009
  • Feature
  • LNA
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • SMA Male
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -30°C
  • Applications
  • GPS
  • Frequency
  • 1.57542GHz
  • Impedance
  • 50Ohm
  • Cable Length
  • 152.4mm
  • Bandwidth
  • 10MHz
  • Gain
  • 5dB
  • Frequency Range
  • 1.570GHz~1.580GHz
  • RF Family/Standard
  • Navigation
  • Antenna Type
  • Module
  • VSWR
  • 1.5
  • Number of Bands
  • 1
  • Frequency (Center/Band)
  • 1.575GHz
  • Height
  • 12.4968mm
  • Length
  • 44.958mm
  • Width
  • 36.576mm
  • Height (Max)
  • 0.492 12.50mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-GPS-SH-SMA.

Datasheets:

ANT-GPS-SH-SMA Overview


The Magnetic, Chassis Mount value makes it suitable for general RF Antennas.From the SH series, it's a Antenna RF.A solid enclosure of Bulk surrounds RF modulator.In most RF ics, its Chassis Mount makes it suitable.Shipping overseas is convenient with the RF ic packed in SMA.Test statistics indicate that the minimum operating temperature of the RF Antennas would be -30°C.Temperatures above 85°C should not be used to operate the RF Antennas.

ANT-GPS-SH-SMA Features


With Magnetic, Chassis Mount
SH series
Above 85°C degrees Celsius


ANT-GPS-SH-SMA Applications


There are a lot of Linx Technologies Inc.
ANT-GPS-SH-SMA RF Antennas applications.


  • Solar flares
  • Static electricity
  • Cosmic noise
  • Generators
  • Lightings
  • Rectifiers
  • Inverters
  • Satellites
  • Transmission
  • Cellphones
