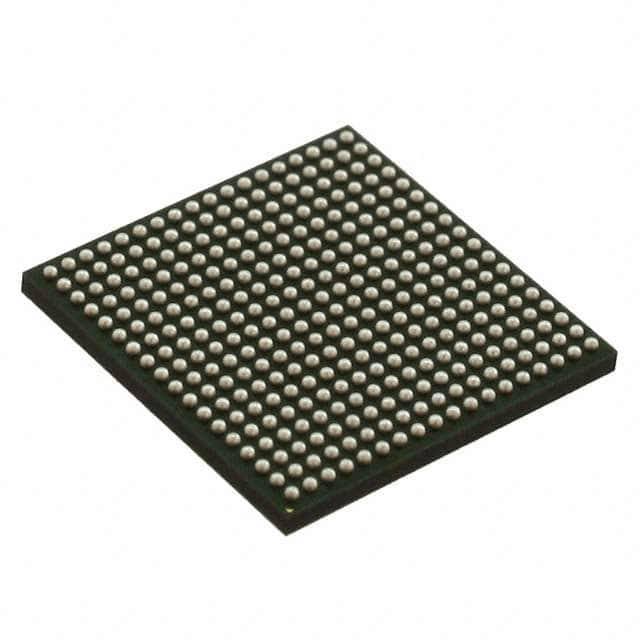

TI AM3358ZCZD72

Manufacturer No:

AM3358ZCZD72

Manufacturer:

Package:

324-LFBGA

Description:

0.8mm ARM® Cortex®-A8 0.95/1.10.95/1.26V 32-bit Microprocessor Sitara? Series AM3358 324-Pin 720MHz 1.1V 324-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AM3358ZCZD72 information

TI AM3358ZCZD72 technical specifications, attributes, parameters and parts with similar specifications to TI AM3358ZCZD72.

Type
Parameter

Mount
Surface Mount

Package / Case
324-LFBGA

Number of Pins
324

Operating Temperature
-40°C~90°C TJ

Packaging
Tray

Series
Sitara?

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
324

ECCN Code
3A991.A.2

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.31.00.01

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.1V

Terminal Pitch
0.8mm

Frequency
720MHz

Base Part Number
AM3358

Pin Count
324

Power Supplies
0.95/1.10.95/1.26V

Interface
CAN, Ethernet, I2C, SPI, UART, USB

Max Supply Voltage
1.144V

Min Supply Voltage
912mV

Memory Size
64kB

RAM Size
64kB

Memory Type
ROM

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR, RISC

Core Processor
ARM® Cortex®-A8

Bit Size
32

Data Bus Width
32b

Core Architecture
ARM

Boundary Scan
YES

Low Power Mode
YES

Format
FIXED POINT

Integrated Cache
YES

Voltage - I/O
1.8V 3.3V

Ethernet
10/100/1000Mbps (2)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
LPDDR, DDR2, DDR3, DDR3L

USB
USB 2.0 + PHY (2)

Additional Interfaces
CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART

Co-Processors/DSP
Multimedia; NEON? SIMD

Download datasheets and manufacturer documentation for TI AM3358ZCZD72.

Datasheets:

texasinstruments-am3352bzczd60-datasheets-2023.pdf

PCN Obsolescence/ EOL:

texasinstruments-omapl138bzwtd4-pcnobsolescenceeol-5119.pdf

texasinstruments-omapl138bzwtd4-pcnobsolescenceeol-5120.pdf

AM3358ZCZD72 Overview

Shipping overseas is convenient thanks to the embedded microprocessor's packaging in 324-LFBGA. High reliability is achieved using advanced packaging method Tray. 1 Core 32-Bit cores/Bus width are present in the CPU. Identify the operating temperature around -40°C~90°C TJ. In the Sitara? series, it is found. The CPU is cored by a processor with a number of 0 cores. A total of LPDDR, DDR2, DDR3, DDR3L RAM controllers are used by this CPU. The microprocessor features interfaces CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART for better service. At 1.8V 3.3V, the CPU runs its I/O. A MICROPROCESSOR, RISC represents the uPs/uCs/Peripheral ICs type. Search AM3358 for variants of the embedded microprocessor. In total, 324 terminations have been made. Using a 1.1V voltage supply, the microprocessor should turn on and run. It is an architecture with 32 bits. CPUs operate with a frequency of 720MHz Hz. You can refer to the datasheets for the functions of 324 pins. The cpu microprocessor Microprocessors is typical. It is important to note that there is 32b bandwidth available for data transfer. An injection of 324 pins is performed inside the body of the micro processor. This CPU is widely used in many applications because of its Surface Mount mount. This CPU microprocessor requires 0.95/1.10.95/1.26V power supplies according to the datasheet. It is 1.15V on the CPU's core. In general, RAM (Random-Access Memory) is designed with a 64kB of 0MB. normally, the microprocessor should not receive a voltage higher than 1.144V. The lowest voltage that should be applied to the micro processor is 912mV. A CPU is equipped with a 64kB sized memory.

AM3358ZCZD72 Features

ARM® Cortex®-A8 Core
32-Bit Structure
32b-Bit Data Bus Width
64kB RAM

AM3358ZCZD72 Applications

There are a lot of Texas Instruments
AM3358ZCZD72 Microprocessor applications.

Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
