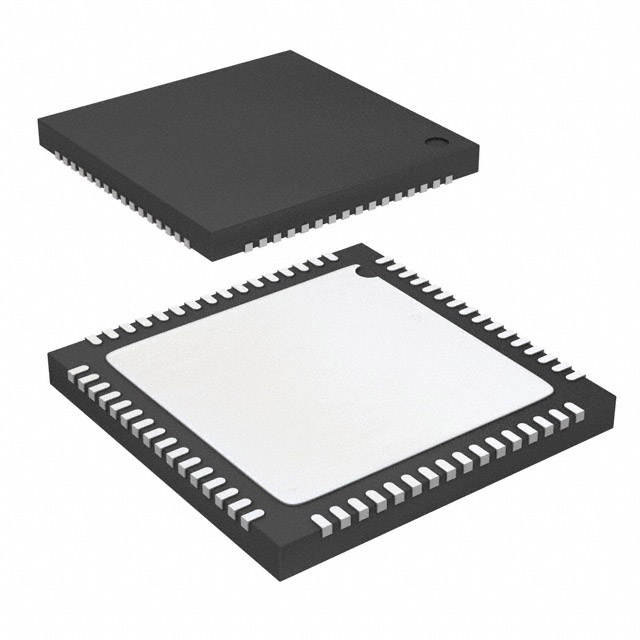

ADI ADUC7128BCPZ126

Manufacturer No:

ADUC7128BCPZ126

Manufacturer:

ADI

Package:

64-VFQFN Exposed Pad, CSP

Description:

126KB 63K x 16 FLASH ARM7® 16/32-Bit Microcontroller MicroConverter® ADuC7xxx Series ADUC7128 64 Pin 41.78MHz 3.3V 64-VFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADUC7128BCPZ126 information

ADI ADUC7128BCPZ126 technical specifications, attributes, parameters and parts with similar specifications to ADI ADUC7128BCPZ126.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
64-VFQFN Exposed Pad, CSP

Number of Pins
64

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
MicroConverter® ADuC7xxx

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

Subcategory
Microcontrollers

Max Power Dissipation
135mW

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Frequency
41.78MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
64

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Interface
I2C, SPI, UART, USART

Memory Size
126kB

Oscillator Type
Internal

Number of I/O
28

RAM Size
2K x 32

Voltage - Supply (Vcc/Vdd)
3V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM7®

Peripherals
PLA, POR, PWM, PSM, Temp Sensor, WDT

Program Memory Type
FLASH

Core Size
16/32-Bit

Program Memory Size
126KB 63K x 16

Connectivity
I2C, SPI, UART/USART

Supply Current-Max
49mA

Bit Size
32

Data Converter
A/D 10x12b; D/A 1x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
NO

Data Bus Width
16b
