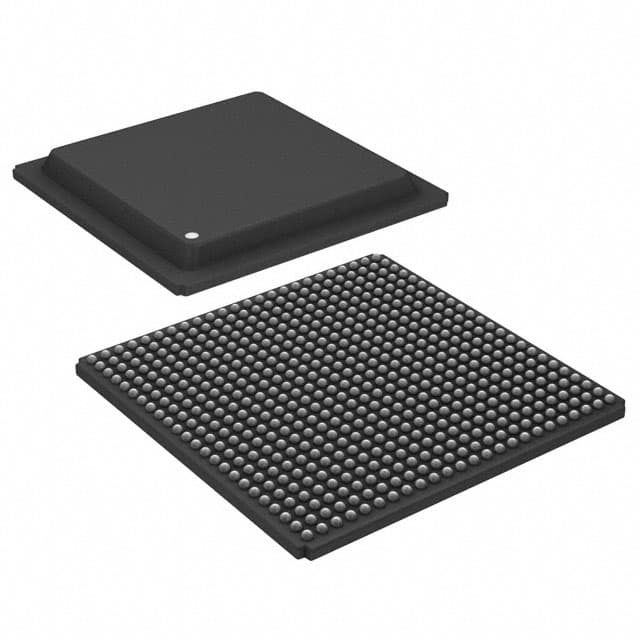

ADI ADSP-TS201SABP-050

Manufacturer No:

ADSP-TS201SABP-050

Manufacturer:

ADI

Package:

576-BBGA Exposed Pad

Description:

1mm Lead, Silver, Tin CPLD TigerSHARC® Series ADSP-TS201 576 Pin 600MHz 1.05V 576-BBGA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADSP-TS201SABP-050 information

ADI ADSP-TS201SABP-050 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-TS201SABP-050.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 1 week ago)

Contact Plating
Lead, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
576-BBGA Exposed Pad

Number of Pins
576

Operating Temperature
-40°C~85°C TC

Packaging
Tray

Series
TigerSHARC®

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
576

Type
Fixed/Floating Point

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Supply Voltage
1.05V

Terminal Pitch
1mm

Frequency
600MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
576

Operating Supply Voltage
1.05V

Interface
Host Interface, Link Port, Multi-Processor

Max Supply Voltage
2.63V

Min Supply Voltage
1V

RAM Size
3MB

Bit Size
32

Data Bus Width
32b

Number of Timers/Counters
2

Address Bus Width
32

Boundary Scan
YES

Low Power Mode
NO

Voltage - I/O
2.50V

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

On Chip Data RAM
3MB

Clock Rate
500MHz

Height Seated (Max)
3.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADSP-TS201SABP-050.

Datasheets:

analogdevicesinc-adspts201sabpz050-datasheets-2037.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADSP-TS201SABP-050 Overview

It is a type of electronic component available in package 576-BBGA Exposed Pad.There is a packaging method of Tray provided with it.Due to its membership in Fixed/Floating Point, it is ideally suited for a wide range of uses.Surface Mount is mounted in a manner that allows it to be moved.The operation of the device at the temperature of -40°C~85°C TC ensures the normal operation of the device.The digital voltage range of 2.50V refers to the voltage that can be input or output.The TigerSHARC® series contains this digital signal processor.Its uses have 576 terminations.The voltage supplied by 1.05V is used to operate it.Pins are available for 576 components.In its configuration, 576 pins can be found.Many related parts can be identified by using the ADSP-TS201 part number as a base.600MHz is a frequency at which the device operates according to a specific design.Surface Mount is used as the mounting method.As a result of its specific characteristics, this device can be classified under the Digital Signal Processors subcategory.1V is the minimum voltage that can be supplied to this device.This device can be powered by 2.63V voltages.The device operates on a voltage of 1.05V as its supply voltage.Timer/counters for measuring and counting external events are called 2 timers or counters.

ADSP-TS201SABP-050 Features

Supplied in the 576-BBGA Exposed Pad package
Operating supply voltage of 1.05V
2 timers/counters

ADSP-TS201SABP-050 Applications

There are a lot of Analog Devices Inc.
ADSP-TS201SABP-050 DSP applications.

Seismology
Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
