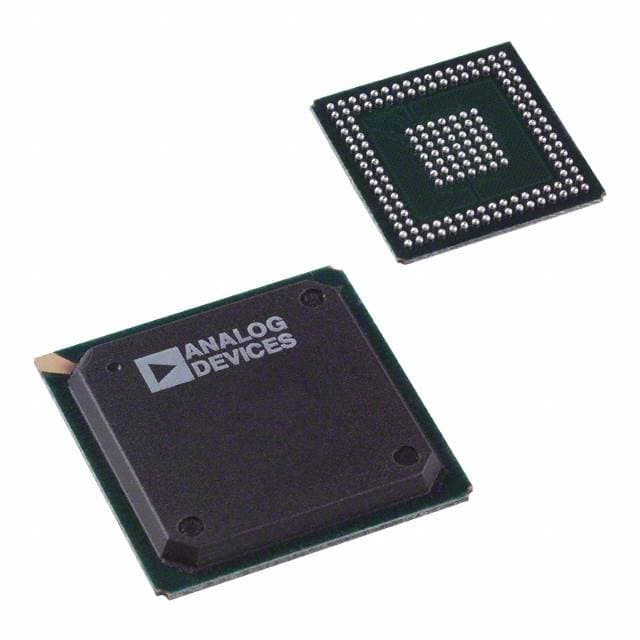

ADI ADSP-BF531SBBZ400
Manufacturer No:
ADSP-BF531SBBZ400
Manufacturer:
Package:
169-BBGA
Description:
52kB CPLD Blackfin® Series ADSP-BF531 169 Pin 400MHz 1.2V 169-BBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-BF531SBBZ400 information
ADI ADSP-BF531SBBZ400 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-BF531SBBZ400.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 weeks ago)
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 169-BBGA
- Number of Pins
- 169
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tray
- Series
- Blackfin®
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Last Time Buy
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 169
- Type
- Fixed Point
- Terminal Finish
- Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
- Additional Feature
- ALSO REQUIRES 3V OR 3.3V SUPPLY
- Subcategory
- Microprocessors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 1.2V
- Frequency
- 400MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 169
- Qualification Status
- Not Qualified
- Interface
- SPI, SSP, UART
- Max Supply Voltage
- 3.6V
- Min Supply Voltage
- 800mV
- Memory Size
- 52kB
- RAM Size
- 16kB
- Memory Type
- ROM, SRAM
- Number of Bits
- 16
- Bit Size
- 32
- Data Bus Width
- 16b
- Number of Timers/Counters
- 4
- Core Architecture
- Blackfin
- Boundary Scan
- YES
- Low Power Mode
- YES
- Voltage - I/O
- 3.30V
- Number of UART Channels
- 1
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- ROM (1kB)
- Voltage - Core
- 1.20V
- Height
- 1.73mm
- Length
- 19mm
Download datasheets and manufacturer documentation for ADI ADSP-BF531SBBZ400.
Datasheets:
PCN Obsolescence/ EOL:
PCN Design/Specification:
ConflictMineralStatement:
ADSP-BF531SBBZ400 Overview
It is a type of electronic component available in package 169-BBGA.Packaging method Tray is provided.With its association with Fixed Point, it is suitable for a wide range of applications.The mounting is carried out in the direction of Surface Mount.Keeping the device at the temperature of -40°C~85°C TA will ensure that it runs as it should.The analog voltage range of 3.30V refers to the input or output voltage.The Blackfin® series incorporates this digital signal processor.The terminations for its uses are 169.It is supplied with voltage by 1.2V.In this component, there are pins for 169.This configuration contains 169 pins.By using its base part number of ADSP-BF531, many related parts can be identified.A specific design is present for the device in order for it to operate at the frequency of 400MHz.A Surface Mount mounting method is used for its mounting.The device can be classified under the subcategory Microprocessors based on its specific characteristics.In order to power this device, a voltage as low as 800mV needs to be supplied.A maximum voltage of 3.6V can be provided to this device.Using this device, you can store 52kB data.The 1 UART channels support synchronous serial communication with configurable data formats and rates.This electronic part can provide more features for ALSO REQUIRES 3V OR 3.3V SUPPLY.Count, measure, and measure external events using 4 timers/counters.Blackfin architecture is used for this processor core.A ROM, SRAM memory type is used.In the device are 16 pieces of information.
ADSP-BF531SBBZ400 Features
Supplied in the 169-BBGA package
4 timers/counters
ADSP-BF531SBBZ400 Applications
There are a lot of Analog Devices Inc.
ADSP-BF531SBBZ400 DSP applications.
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
- Biomedical engineering
- MP3 audio player
- Computers and laptop
