ADI ADSP-21469KBCZ-3
Manufacturer No:
ADSP-21469KBCZ-3
Manufacturer:
Package:

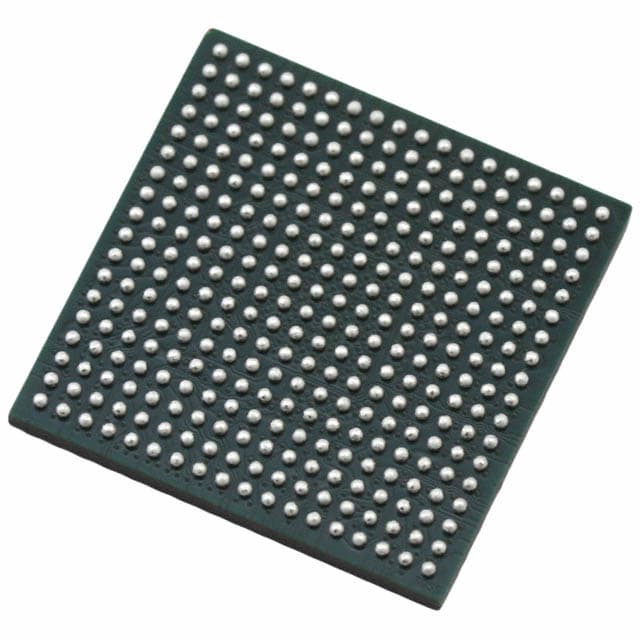

324-BGA, CSPBGA
Description:
Copper, Silver, Tin 5MB CPLD SHARC® Series ADSP-21469 324 Pin 450MHz 1.05V 324-BGA, CSPBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-21469KBCZ-3 information
ADI ADSP-21469KBCZ-3 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-21469KBCZ-3.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 1 month ago)
- Factory Lead Time
- 16 Weeks
- Contact Plating
- Copper, Silver, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 324-BGA, CSPBGA
- Number of Pins
- 324
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tray
- Series
- SHARC®
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 324
- Type
- Floating Point
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Subcategory
- Digital Signal Processors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 1.05V
- Frequency
- 450MHz
- Base Part Number
- ADSP-21469
- Pin Count
- 324
- Interface
- DAI, DPI, EBI/EMI, I2C, SCI, SPI, SSP, UART/USART
- Max Supply Voltage
- 1.1V
- Min Supply Voltage
- 1V
- Memory Size
- 5MB
- Number of I/O
- 16
- RAM Size
- 640kB
- Memory Type
- ROMless
- Bit Size
- 32
- Data Bus Width
- 32b
- Core Architecture
- SHARC
- Boundary Scan
- YES
- Low Power Mode
- NO
- Voltage - I/O
- 3.30V
- Number of I2C Channels
- 1
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- Voltage - Core
- 1.05V
- On Chip Data RAM
- 5Mbit
- Number of SPI Channels
- 2
- Clock Rate
- 400MHz
Download datasheets and manufacturer documentation for ADI ADSP-21469KBCZ-3.
Other Related Documents:
ConflictMineralStatement:
ADSP-21469KBCZ-3 Overview
It is a kind of electronic component available in the 324-BGA, CSPBGA package.It is provided with a packaging way of Tray.As a member of Floating Point, it is ideally suitable for a wide range of applications.It is mounted in the way of Surface Mount.Operating at the temperature of -40°C~85°C TA ensures its normal operation.The analog voltage range of 3.30V refers to the voltage that can be input or ouput.This digital signal processor is included into the SHARC® series.There are 324 terminations for its uses.It operates with the supply voltage of 1.05V.There are 324 component pins.324 pins can be found in its configuration.Based on its base part number of ADSP-21469, many ralated parts can be found.It is specifically designed to operate with the frequency of 450MHz.It adopts Surface Mount as its mounting way.Based on its specific characteristics, this device can be classified into the subcategory of Digital Signal Processors.The minimum voltage supplied to this device is as low as 1V.The maximum voltage supplied to this device amounts to 1.1V.This device is able to store 5MB data in its memory.This processor core adopts the architecture of SHARC.The device is equipped with 16 I/Os.It adopts ROMless as its memory type.In this embedded system, 2 SPI channels are used for short-distance communication.There are 1 I2C channels used to establish communication between more Ics.
ADSP-21469KBCZ-3 Features
Supplied in the 324-BGA, CSPBGA package
16 I/Os
ADSP-21469KBCZ-3 Applications
There are a lot of Analog Devices Inc.
ADSP-21469KBCZ-3 DSP applications.
- Audio signal
- Speech processing
- Radar
- Seismology
- Audio
- Sonar
- Voice recognition
- Financial signals
- Other sensor array processing
- Spectral density estimation
