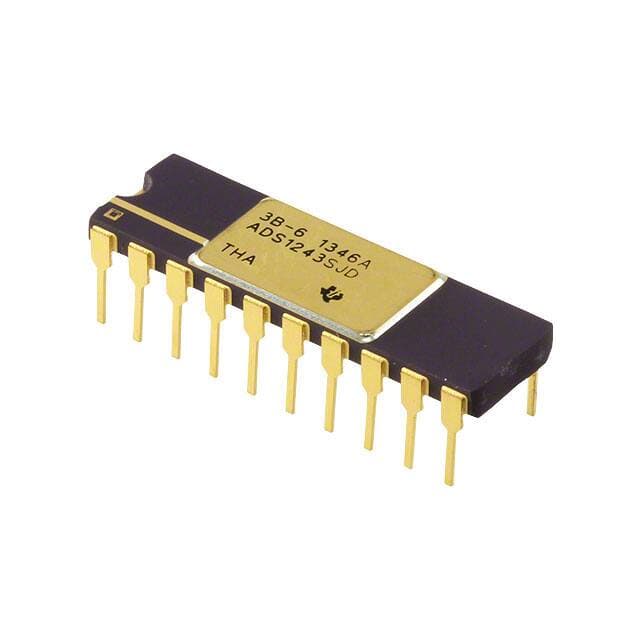

TI ADS1243SJD
TI ADS1243SJD

TI ADS1243SJD

Manufacturer No:

ADS1243SJD

Manufacturer:

TI

Package:

20-CDIP (0.300, 7.62mm)

Description:

24 Bit 2.54mm ADC ADS1243 3V 20-CDIP (0.300, 7.62mm)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADS1243SJD information

TI ADS1243SJD technical specifications, attributes, parameters and parts with similar specifications to TI ADS1243SJD.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Mounting Type
  • Through Hole
  • Package / Case
  • 20-CDIP (0.300, 7.62mm)
  • Surface Mount
  • NO
  • Number of Pins
  • 20
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • Feature
  • PGA
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • Subcategory
  • Other Converters
  • Max Power Dissipation
  • 2.52mW
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 2.54mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • ADS1243
  • Pin Count
  • 20
  • Qualification Status
  • Not Qualified
  • Polarity
  • Bipolar
  • Power Supplies
  • 3/5V
  • Configuration
  • MUX-PGA-ADC
  • Max Supply Voltage
  • 5.25V
  • Min Supply Voltage
  • 2.7V
  • Power Dissipation
  • 1.3mW
  • Number of Bits
  • 24
  • Input Type
  • Differential, Single Ended
  • Architecture
  • Sigma-Delta
  • Number of Inputs
  • 8
  • Converter Type
  • ADC, DELTA-SIGMA
  • Supply Type
  • Single
  • Reference Type
  • External
  • Data Interface
  • SPI
  • Resolution
  • 3 B
  • Sampling Rate
  • 15 sps
  • Voltage - Supply, Analog
  • 2.7V~3.3V 5V
  • Voltage - Supply, Digital
  • 2.7V~5.25V
  • Number of Analog In Channels
  • 8
  • Sampling Rate (Per Second)
  • 15
  • Output Bit Code
  • BINARY
  • Linearity Error-Max (EL)
  • 0.0025%
  • Sample and Hold / Track and Hold
  • SAMPLE

Download datasheets and manufacturer documentation for TI ADS1243SJD.

Datasheets:

ADS1243SJD Description


The ADS1243 is a precision, wide dynamic range, delta-sigma, analog-to-digital (A/D) converter with 24-bit resolution operating from 2.7-V to 5.25-V supplies.

This delta-sigma, A/D converter provides up to 24 bits of no missing code performance and an effective resolution of 21 bits.

The input channels are multiplexed. Internal buffering can be selected to provide a very high input impedance for direct connection to transducers or low-level

voltage signals. Burnout current sources are provided that allow for the detection of an open or shorted sensor. An 8-bit digital-to-analog converter (DAC)

provides an offset correction with a range of 50% of the FSR (Full-Scale Range).



ADS1243SJD Features


24-Bits No Missing Codes

Simultaneous 50-Hz and 60-Hz Rejection(-90 dB Minimum)

0.0025% INL

PGA Gains From 1 to 128

Single-Cycle Settling

Programmable Data Output Rates

External Differential Reference of 0.1 V to 5 V

On-Chip Calibration

SPI Compatible2.7 V to 5.25 V Supply Range

600-pW Power Consumption

Up to Eight Input Channels

Up to Eight Data l/O



ADS1243SJD Applications


Down-Hole Drilling

High-Temperature Environments

Vibration/Modal Analysis

Multi-Channel Data Acquisition

Acoustics/Dynamic Strain Gauges

Pressure Sensors
