ADI ADP8140ACPZ-1-R7
ADI ADP8140ACPZ-1-R7

ADI ADP8140ACPZ-1-R7

Manufacturer No:

ADP8140ACPZ-1-R7

Manufacturer:

ADI

Package:

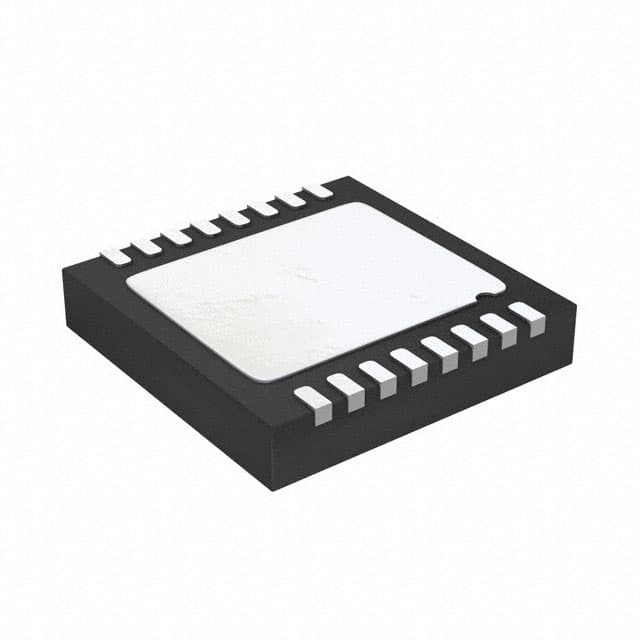

16-WFDFN Exposed Pad, CSP

Description:

PMIC ADP8140 16 Pin 12V 16-WFDFN Exposed Pad, CSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP8140ACPZ-1-R7 information

ADI ADP8140ACPZ-1-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP8140ACPZ-1-R7.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 3 months ago)
  • Factory Lead Time
  • 26 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 16-WFDFN Exposed Pad, CSP
  • Number of Pins
  • 16
  • Operating Temperature
  • -40°C~105°C TA
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 16
  • Type
  • Linear
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • Backlight, Lighting
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 12V
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • ADP8140
  • Pin Count
  • 16
  • Output Voltage
  • 3.15V
  • Max Output Current
  • 500mA
  • Max Supply Voltage
  • 30V
  • Output Current
  • 500mA
  • Min Input Voltage
  • 7.5V
  • Max Input Voltage
  • 30V
  • Output Current per Channel
  • 500mA
  • Internal Switch(s)
  • Yes
  • Dimming
  • Analog, PWM
  • Max Input Voltage (DC)
  • 30V
  • Min Input Voltage (DC)
  • 3V
  • Number of Segments
  • 16
  • Nominal Input Voltage (DC)
  • 12V
  • Height Seated (Max)
  • 0.8mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ADI ADP8140ACPZ-1-R7.

Datasheets:

ConflictMineralStatement:

ADP8140ACPZ-1-R7 Overview


In order to save board space, the led driver uses the 16-WFDFN Exposed Pad, CSP package. For the design of this LED driver, 4 outputs are used.The mounting method is Surface Mount.As a Linear, it has high efficiency and reliability.The led light driver operates normally at -40°C~105°C TA. The benefits it provides to Backlight, Lighting are considerable.The terminations 16 are designed for its operation.To form its configuration, 16 pins are used.The segment count is 16.Surface Mount is mounted in the way.There is a base part number ADP8140 for this LED driver.A maximum supply voltage of 30V is acceptable.The device has 16 pins.When the input voltage is set to 7.5V, it operates.Supply current is limited to 30V at its maximum value.A load can be supplied with 500mA current.The maximum output current of 500mA allows it to deliver all benefits of a LED driver.It has a voltage of 3.15V.

ADP8140ACPZ-1-R7 Features


Available in the 16-WFDFN Exposed Pad, CSP package
Operating temperature of -40°C~105°C TA
Supply voltage of 12V
Output voltage of 3.15V


ADP8140ACPZ-1-R7 Applications


There are a lot of Analog Devices Inc.
ADP8140ACPZ-1-R7 LED Driver ICs applications.


  • Architectural lighting
  • Street lighting
  • Stage and Studio lighting
  • Refrigeration lighting
  • Portable lighting
  • Gallery lighting
  • Museum lighting
  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
