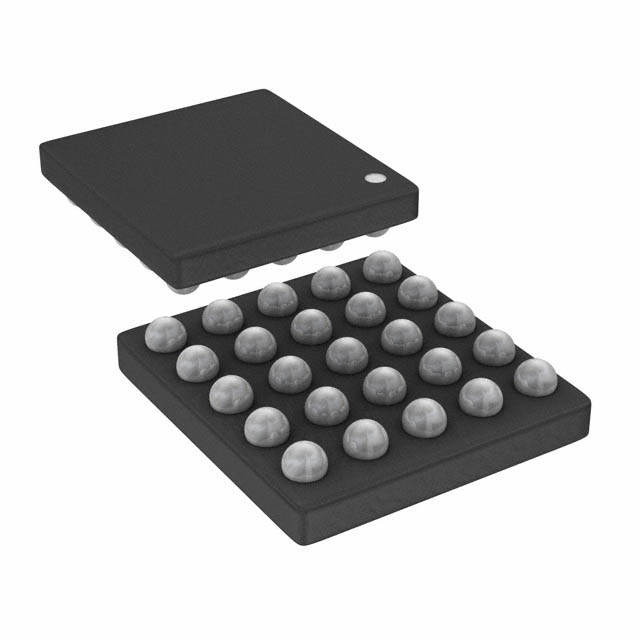

ADI ADP5587ACBZ-R7

Manufacturer No:

ADP5587ACBZ-R7

Manufacturer:

ADI

Package:

25-UFBGA, WLCSP

Description:

25 Termination 0.4mm 1.8/3.3V Copper, Silver, Tin I/O Expander ADP5587 25 Pin 1.8V 25-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP5587ACBZ-R7 information

ADI ADP5587ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP5587ACBZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
8 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
25-UFBGA, WLCSP

Number of Pins
25

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Feature
Keypad Controller, POR

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
25

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.39.00.01

Subcategory
Parallel IO Ports

Technology
CMOS

Voltage - Supply
1.65V~3.6V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ADP5587

Pin Count
25

Qualification Status
Not Qualified

Output Type
Open Drain

Operating Supply Voltage
3.6V

Power Supplies
1.8/3.3V

Interface
I2C

Number of I/O
18

Number of Ports
2

Nominal Supply Current
200?A

uPs/uCs/Peripheral ICs Type
PARALLEL IO PORT, GENERAL PURPOSE

Number of Bits
18

Clock Frequency
400kHz

Interrupt Output
Yes

Length
1.97mm

Height Seated (Max)
0.645mm

Width
1.97mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADP5587ACBZ-R7.

ADP5587ACBZ-R7 Overview

The board has been programmed with 18 I/Os.In the packaging with the 25-UFBGA, WLCSP, there is a device enclosed in the package.There is an option of the Tape & Reel (TR) case that you can choose from.There is a vote within the 1.65V~3.6V range that is supplied.The recommended mounting type is Surface Mount, which makes it suitable for most applications.A device works when its operating temperature ranges from -40°C~85°C to -40°C~85°C.In order to achieve a good performance, it works at a frequency of 400kHz.As a whole, it consists of 25 terminations.In total, there are 25 pins on the part.There is voltage present at 1.8V as a result of the device.It is utilized to run NOT SPECIFIED on this part due to its peak reflow temperature.2 ports are present on the device as a whole.The ADP5587 family of parts can be used to identify related parts.In addition, Keypad Controller, POR can also be founded when using this device.There are a total of 18 bits on each IC chip.It is capable of delivering the power at the position 1.8/3.3V.In addition to the 25 pins, the device has other pins as well.With Surface Mount, you can mount the part.Whenever the chip is supplied with a voltage of 3.6V, it conducts.As with other PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/peripheral ICs, it belongs to the PARALLEL IO PORT, GENERAL PURPOSE family.Parallel IO Ports series is the series that it belongs to.
