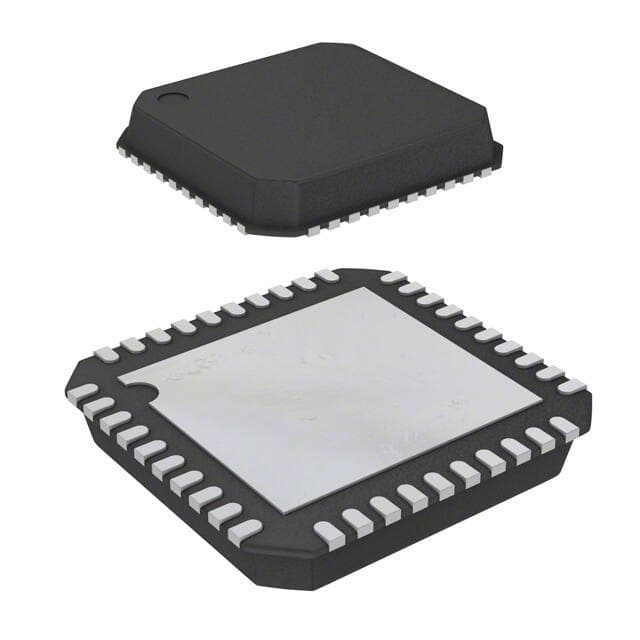

ONSEMI ADP3192JCPZ-RL
Manufacturer No:
ADP3192JCPZ-RL
Manufacturer:
Package:
40-VFQFN Exposed Pad, CSP
Description:
Controller, Intel VR10, VR11 0.5V~1.6V 260 Cel QUAD Specialized Voltage Regulator 0°C~85°C ADP3192 40 Pins 40 Terminations 40-VFQFN Exposed Pad, CSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADP3192JCPZ-RL information
ONSEMI ADP3192JCPZ-RL technical specifications, attributes, parameters and parts with similar specifications to ONSEMI ADP3192JCPZ-RL.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 40-VFQFN Exposed Pad, CSP
- Number of Pins
- 40
- Operating Temperature
- 0°C~85°C
- Packaging
- Tape & Reel (TR)
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 40
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Applications
- Controller, Intel VR10, VR11
- Additional Feature
- CAN ALSO BE CONFIGURED IN CURRENT MODE
- Terminal Position
- QUAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- ADP3192
- Pin Count
- 40
- Number of Outputs
- 4
- Input Voltage-Nom
- 5V
- Analog IC - Other Type
- SWITCHING CONTROLLER
- Voltage - Input
- 12V
- Voltage - Output
- 0.5V~1.6V
- Control Mode
- VOLTAGE-MODE
- Control Technique
- PULSE WIDTH MODULATION
- Switcher Configuration
- PHASE-SHIFT
- Length
- 6mm
- Height Seated (Max)
- 1mm
- Width
- 6mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
