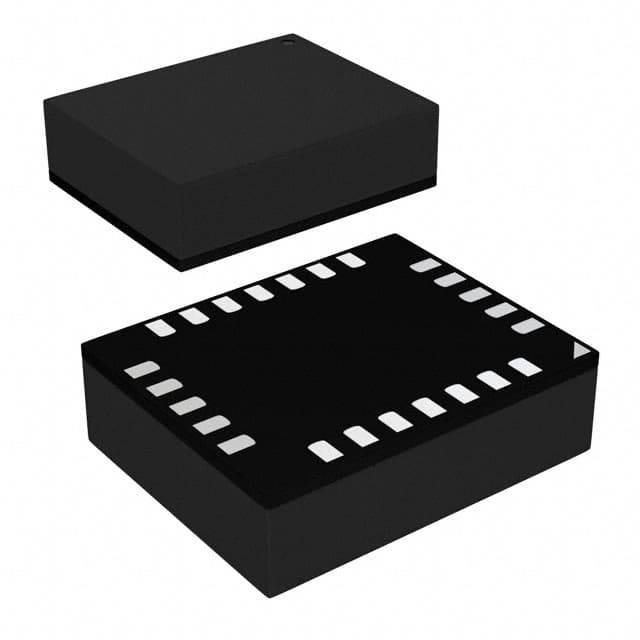

ADI ADAQ7980BCCZ

Manufacturer No:

ADAQ7980BCCZ

Manufacturer:

ADI

Package:

24-FLGA

Description:

16 Bit 0.5mm ADC µModule® Series ADAQ7980 5V 24-FLGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADAQ7980BCCZ information

ADI ADAQ7980BCCZ technical specifications, attributes, parameters and parts with similar specifications to ADI ADAQ7980BCCZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
24-FLGA

Surface Mount
YES

Number of Pins
24

Operating Temperature
-55°C~125°C

Packaging
Tray

Series
µModule®

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADAQ7980

Pin Count
24

Configuration
ADC

Number of Bits
16

Architecture
SAR

Number of Inputs
1

Reference Type
External

Data Interface
MICROWIRE?, QSPI?, Serial, SPI?

Voltage - Supply, Analog
3.7V~10V

Voltage - Supply, Digital
3.5V~10V

Number of Analog In Channels
1

Sampling Rate (Per Second)
1M

Output Bit Code
BINARY

Linearity Error-Max (EL)
0.002%

Analog Input Voltage-Max
1V

Conversion Time-Max
0.8?s

Length
5mm

Height Seated (Max)
2.08mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI ADAQ7980BCCZ.

ADAQ7980BCCZ Overview

The analogue to digital converter is designed with 16 Bits.The AD converter is embedded in the 24-FLGA package.The ADC converter is packaged in the way of Tray.The ADC converter is equipped with 1 Functions .There are 24 terminations in this electrical AD converter, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line.The analogue to digital converter is powered from a supply voltage of 5V.The A/D converter has 1 channels.The is equipped with 24 pin count.The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible.This electronic AD converter is mounted in the way of Surface Mount.When operating, analogue to digital converter's operating temperature should be kept at -55°C~125°C.The number of samples of audio recorded every second is 1M Hz.The input type of this electronic AD converter is Pseudo-Differential.There are External reference types differentiated on the way by which they are garbage collected. This electronic digital converter is configured in such a way that ADC.The architecture that analogue to digital converter's core adopts is SAR.There are 24 pins, which are pronged contacts as part of a signal interface in a computer or other communications device. The supply/analog voltage of this electrical ADC converter is 3.7V~10V, which converts alternative voltage (AC voltage) to regulated direct voltage (DC voltage) and provide regulated DC power in order to drive a load.It belongs to ADAQ7980 family.The supply/digital voltage of this electrical AD converter is 3.5V~10V.1 inputs are employed.The maximal analog input voltage of this electrical AD converter is 1V.It is a type of FPGA belonging to the µModule® series.

ADAQ7980BCCZ Features

1 Functions
24 basic kinds of terminations
24 pin count
µModule® series

ADAQ7980BCCZ Applications

There are a lot of Analog Devices Inc.
ADAQ7980BCCZ ADC applications.

Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
Scientific instruments.
