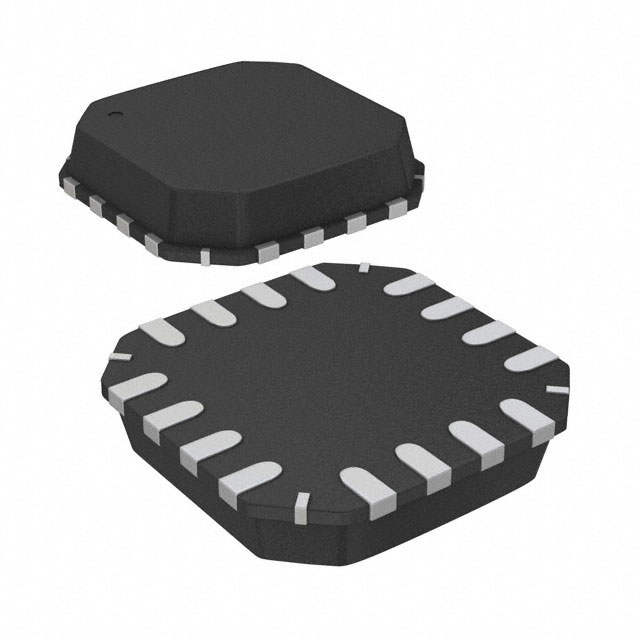

ADI AD8222HACPZ-R7

Manufacturer No:

AD8222HACPZ-R7

Manufacturer:

ADI

Package:

16-VQFN, CSP

Description:

2 Channels 18mA per Channel 500pA 86 dB Instrumentational OP Amps 0.003?A 15V 4.6V~36V ±2.3V~18V AD8222 16 Pins 16-VQFN, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD8222HACPZ-R7 information

ADI AD8222HACPZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI AD8222HACPZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
16 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
16-VQFN, CSP

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Resistance
100GOhm

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
AD8222

Qualification Status
Not Qualified

Operating Supply Voltage
15V

Number of Channels
2

Operating Supply Current
1.1mA

Nominal Supply Current
1.1mA

Slew Rate
2V/?s

Amplifier Type
Instrumentation

Common Mode Rejection Ratio
86 dB

Current - Input Bias
500pA

Voltage - Supply, Single/Dual (±)
4.6V~36V ±2.3V~18V

Output Current per Channel
18mA

Input Offset Voltage (Vos)
120?V

Bandwidth
1.2MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Voltage Gain
80dB

Average Bias Current-Max (IIB)
0.003?A

Supply Voltage Limit-Max
18V

-3db Bandwidth
1MHz

Input Offset Current-Max (IIO)
0.0015?A

Voltage Gain-Nom
100

Length
4mm

Height Seated (Max)
1mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for ADI AD8222HACPZ-R7.

AD8222HACPZ-R7 Overview

Packaged in a 16-VQFN, CSP case, the buffer op amp is ready to use. An op amp ic of the Instrumentation type. The op amp is delivered to you in a Tape & Reel (TR) case. There is a growing number of terminations approaching the number of 16. The pins on this board total to 16 in total. I would like to remind you that this buffer op amp should be powered by an 15V battery. A total of 16 pins are present on the instrumentation amplifier. There is an input offset voltage of 120?V for this buffer op amp. The mounting type that is recommended for this electrical part is Surface Mount. In relation to the operating temperature of this buffer op amp, it works well at an average of -40°C~85°C . As long as the supply current of the chip does not exceed 1.1mA, this op amp ic can operate. 80dB should remain the voltage gain. As far as the device is concerned, buffer amplifier has 2 channels. The operating supply voltage of the buffer op amp is rated at 15V. Instrumentation amplifier resistance should stay within the range of 100GOhm.

AD8222HACPZ-R7 Features

16 Pins
supply voltage of 15V
80dB voltage gain
Resistance of 100GOhm

AD8222HACPZ-R7 Applications

There are a lot of Analog Devices Inc.
AD8222HACPZ-R7 Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
