ADI AD581KH

Manufacturer No:

AD581KH

Manufacturer:

ADI

Package:

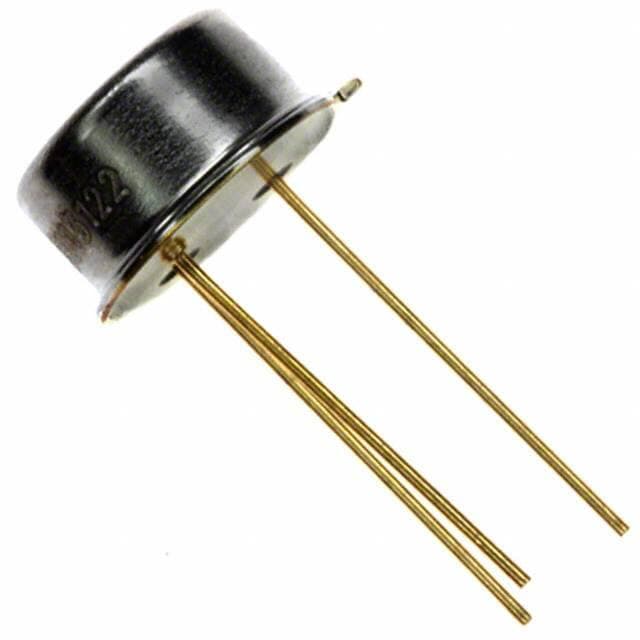

TO-205AA, TO-5-3 Metal Can

Description:

0°C~70°C TA Fixed PMIC AD581 1 Channel 15V TO-205AA, TO-5-3 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD581KH information

ADI AD581KH technical specifications, attributes, parameters and parts with similar specifications to ADI AD581KH.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
TO-205AA, TO-5-3 Metal Can

Surface Mount
NO

Number of Pins
3

Operating Temperature
0°C~70°C TA

Packaging
Bulk

Tolerance
±0.1%

JESD-609 Code
e4

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
15ppm/°C

Terminal Finish
Gold (Au)

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Pin Count
3

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
10V

Output Type
Fixed

Number of Channels
1

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Voltage - Input
13V~30V

Current - Output
10mA

Quiescent Current
1mA

Current - Supply
1mA

Reference Type
Series

Noise - 0.1Hz to 10Hz
40?Vp-p

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI AD581KH.

Datasheets:

analogdevicesinc-ad581kh-datasheets-2043.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD581KH Overview

Uses the handy TO-205AA, TO-5-3 Metal Can package.This part serves as a voltage reference and is controlled by a Series signal.The external packaging contains Bulk.There are different types of functions that end with 3.In order to measure voltage accurately, a tolerance of ±0.1% must be used.It is coupled to an analog IC THREE TERMINAL VOLTAGE REFERENCE.In order to determine the output voltage 10V, test statistics are used.There is 1 need to change the output to 1.Input can be entered via a Fixed form.The part includes pins 3.Reflow soldering shouldn't exceed NOT APPLICABLE.Part 3 has its pins 3 settled.Through Hole can be used to make the PCB design more demanding.The voltage reference circuit can be used within the range of 0°C~70°C TA.Having a type of Voltage References, the reference voltage can be used for a wide variety of applications.Searching for "AD581" will yield other relevant parts.It can be used by applications with 10mA inputs.A high-quality communication channel is not available at the moment.In order for it to work, you must supply a voltage of 15V.In most cases, the voltage reference circuit can supply voltage inputs of 13V~30V volts.At idle, the part uses 1mA.There is a supply current called 1mA that is used to operate the voltage reference ic.

AD581KH Features

±0.1% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT APPLICABLE
Channel Number: 1
Current Supply: 1mA

AD581KH Applications

There are a lot of Analog Devices Inc.
AD581KH Voltage Reference applications.

High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
and Digital-to-Analog Converters
High-Accuracy Reference Standard
High-Accuracy Industrial and Process Control
