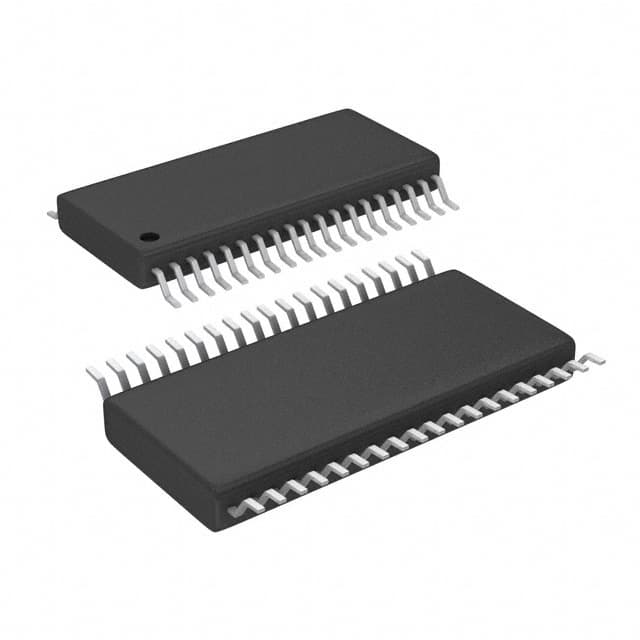

ALLEGRO A3938SLD

Manufacturer No:

A3938SLD

Manufacturer:

ALLEGRO

Package:

38-TFSOP (0.173, 4.40mm Width)

Description:

4.4mm mm Motor Drivers 38 9.7mm mm Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A3938SLD information

ALLEGRO A3938SLD technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A3938SLD.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
38-TFSOP (0.173, 4.40mm Width)

Number of Pins
38

Operating Temperature
-20°C~85°C TA

Packaging
Tube

Published
2008

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
38

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Applications
General Purpose

Subcategory
Motion Control Electronics

Technology
Power MOSFET

Voltage - Supply
18V~50V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
A3938

Function
Controller - Commutation, Direction Management

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
50V

Interface
Parallel, PWM

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Output Configuration
Pre-Driver - Half Bridge (3)

Supply Current-Max (Isup)
8mA

Motor Type - AC, DC
Brushless DC (BLDC)

Length
9.7mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ALLEGRO A3938SLD.

Datasheets:

allegromicrosystems-a3938sldtrt-datasheets-2992.pdf

A3938SLD Overview

This package was designed with Tubein mind.38-TFSOP (0.173, 4.40mm Width)cases are included with the part.The part should be mounted by Surface Mount.I believe it is suitable for the component connected to General Purpose.There is a capability for the device to provide 18V~50V volts.This device operates at a temperature of -20°C~85°C TA.Drivers controllers is possible to classify the motor type as Brushless DC (BLDC).This part provides 38terminations.The recommended way to mount it is Surface Mount.This device utilizes the BRUSHLESS DC MOTOR CONTROLLERanalog integrated circuit.The A3938part number allows us to locate it.A device with 38pins is available.Drivers controllers belongs to the Motion Control Electronics series.The available outputs are [0].

A3938SLD Features

Applications : General Purpose
base on A3938 number
designed with 1 outputs

A3938SLD Applications

There are a lot of Allegro MicroSystems
A3938SLD motor drivers applications.
