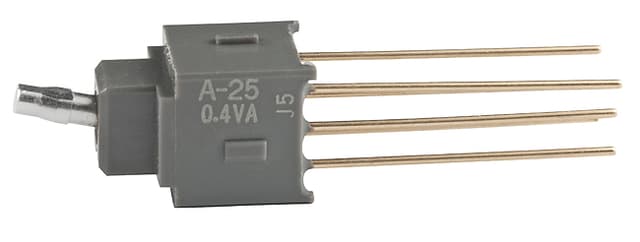

NKK Switches A25KW

Manufacturer No:

A25KW

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A25KW information

NKK Switches A25KW technical specifications, attributes, parameters and parts with similar specifications to NKK Switches A25KW.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Through Hole

Surface Mount
NO

Actuator Material
NYLON

Center Contact Plating
GOLD OVER SILVER

Center Contact Material
PHOSPHOR BRONZE

End Contact Plating
GOLD OVER NICKEL

Operating Temperature
-30°C~85°C

Packaging
Tray

Series
A

JESD-609 Code
e4

Feature
Process Sealed

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Current Rating (Amps)
0.4VA AC/DC

Termination Style
Wire Wrap

Voltage - Rated AC
28V

Body Length or Diameter
8.9916mm

Body Breadth
8.7884 mm

Actuator Type
Actuator Arm, Cap Required

Circuit
DPDT

Switch Function
On-Mom

Contact Resistance
0.05mOhm

Insulation Resistance
500000000Ohm

Electrical Life
50,000 Cycles

Mechanical Life
50,000 Cycles

Switch Type
TOGGLE SWITCH

Actuator Marking
No Marking

PCB Hole Count
6

Actuator Color
BLUE

Contact Function
ON-(ON)

Bushing Length
0.138 inch

Actuator Angle
26 deg

Washability
SOLVENT

Body Height
42.3164mm

Length - Termination
0.744 inch

Actuator Length
0.406 inch

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NKK Switches A25KW.

Environmental Information:

nkkswitches-ftas00104a5-environmentalinformation-7730.pdf

nkkswitches-isusb1-environmentalinformation-2898.pdf

nkkswitches-isusb1-environmentalinformation-2899.pdf

No product details available
