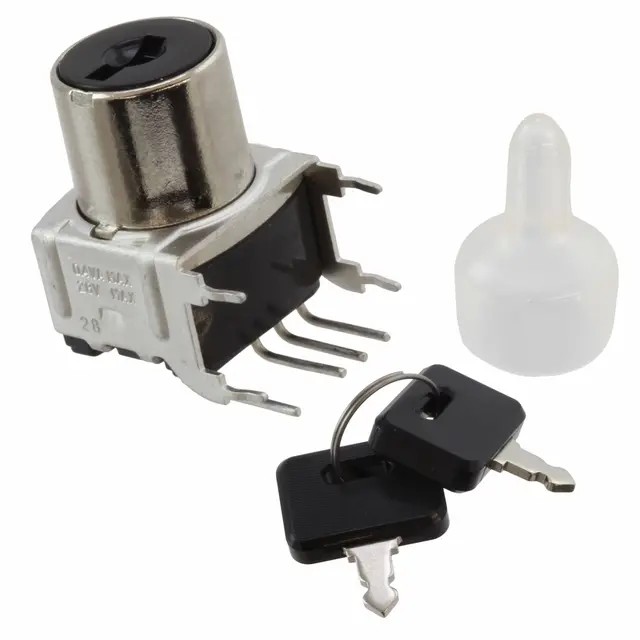

NKK Switches SK14DG30

Manufacturer No:

SK14DG30

Manufacturer:

Package:

Description:

Description: Process Sealed Keylock; Poles: SP3T; no positions: 3; Circuits: On-On-On; contact timing: Non-Shorting (BBM); Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Flat Key; key removable positions: All; angle throw: 45?; contact material: Beryllium Copper; contact finish: Gold; Mounting Type: Through Hole, Right Angle; Termination Style: PC Pin; Features: Process Sealed; Rating: 0.4

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SK14DG30 information

NKK Switches SK14DG30 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches SK14DG30.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
NKK SWITCHES OF AMERICA INC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.50.90.65

Samacsys Manufacturer
NKK Switches

Actuator Material
POLYACETAL

Actuator Type
KEYLOCK

Additional Feature
KEY REMOVABLE POSITION 1,2 & 3

Body Breadth
15.24 mm

Body Height
10.4902 mm

Body Length or Diameter
16.3068 mm

Bushing Diameter
0.472 inch

Bushing Length
0.413 inch

Bushing Type
UNTHREADED

Center Contact Material
PHOSPHOR BRONZE

Center Contact Plating
GOLD OVER NICKEL

Contact (DC) Max Power Rating R Load
0.4VA@28VDC

Contact Function
ON-ON-ON

Contact Resistance
0.08 mΩ

Contact Timing
BREAK-BEFORE-MAKE

Dielectric Withstand Volts
500VAC V

End Contact Material
COPPER ALLOY

End Contact Plating
GOLD OVER NICKEL

Indexing Angle
45 deg

Insulation Resistance
100000000 Ω

Insulator Material
GLASS FILLED POLYESTER

JESD-609 Code
e3

Mounting Feature
THROUGH HOLE-RIGHT ANGLE

Number of Positions
3

Operating Temperature-Max
70 °C

Operating Temperature-Min
-25 °C

PCB Hole Count
8

Sealing
MOLDED

Solderability
WAVE

Surface Mount
NO

Switch Action
CIRCULAR

Switch Function
SP3T

Switch Type
KEYLOCK SWITCH

Terminal Finish
TIN

Terminal Length
0.138 inch

Terminal Material
BRASS

Termination Type
SOLDER

Washability
SOLVENT
