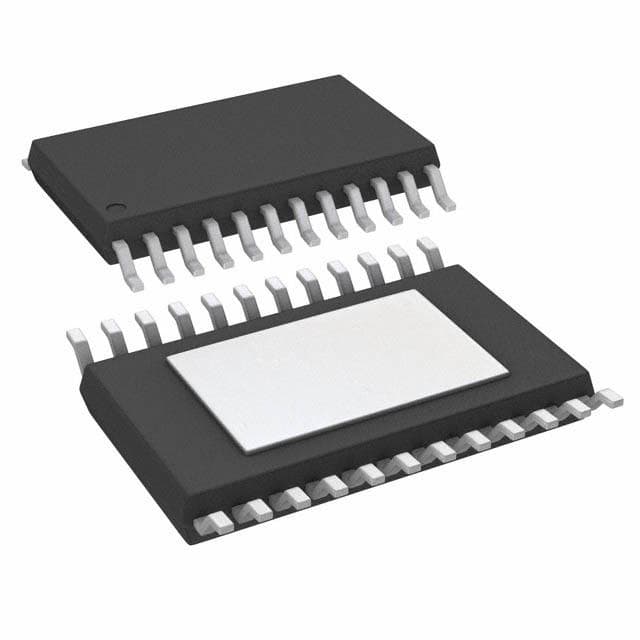

Renesas 844256DGILFT

Manufacturer No:

844256DGILFT

Manufacturer:

Renesas

Package:

TSSOP

Description:

3.3V 625MHz Clock Generators 24 Pins TSSOP 24 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

844256DGILFT information

Renesas 844256DGILFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 844256DGILFT.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
24

Packaging
Tape and Reel

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Generators

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.465V

Min Supply Voltage
3.025V

Nominal Supply Current
172mA

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, OTHER

Frequency (Max)
625MHz

Input
Crystal

Primary Clock/Crystal Frequency-Nom
25.5MHz

Length
7.8mm

Width
4.4mm

Thickness
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 844256DGILFT.

Datasheets:

integrateddevicetechnology-844256dgilft-datasheets-9963.pdf

844256DGILFT Overview

A clock integrated circuit is packaged in a Tape and Reel-shaped package because it is for use as a clock. There is a clock generator embedded in the TSSOP package. This clock generator will sustain a maximum temperature of 260 when reflown. There are 24 terminations found in the file. The clock generator ic should be grounded with a voltage of 3.3V. This clock generator receives its inputs from Crystal, which is designed to be the clock source. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. An upper frequency limit of 625MHz Max can be achieved with this clock-based frequency synthesizer. RF synthesizer incorporates CLOCK GENERATOR, OTHER UPUs, PCs, and peripheral IC's. There is a 24-bit clock-generating IC built specifically for microprocessors in this frequency generator. PLL is designed with 24 pins. Designed to operate at low temperatures, this frequency generator performs -40°C operations per second. There is still a possibility of the electronic frequency generator working at 85°C with attenuated performance. The supply voltage should be maintained at 3.3V for high efficiency. As a result, it is commonly classified as a type of Clock Generators clock PLL. A voltage above 3.465V will not provide enough power to this frequency generator. For this clock generator ic, 3.025V is the lowest allowable supply voltage.

844256DGILFT Features

Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V

844256DGILFT Applications

There are a lot of Integrated Device Technology (IDT)
844256DGILFT Clock Generators applications.

Wireless infrastructure
Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
