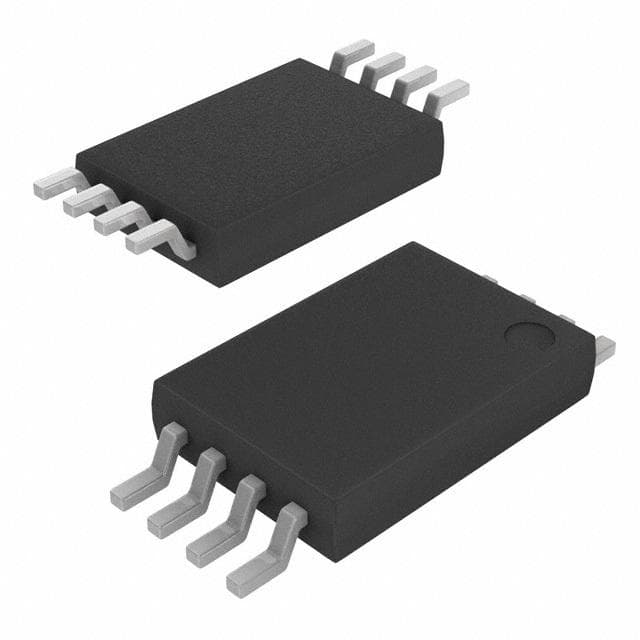

Renesas 843S1066CGLF

Manufacturer No:

843S1066CGLF

Manufacturer:

Renesas

Package:

TSSOP

Description:

3.3V 1.6GHz Clock Generators 8 Pins TSSOP 8 Terminals Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

843S1066CGLF information

Renesas 843S1066CGLF technical specifications, attributes, parameters and parts with similar specifications to Renesas 843S1066CGLF.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
8

Packaging
Bulk

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
COMMERCIAL

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, OTHER

Frequency (Max)
1.6GHz

Input
Crystal

Primary Clock/Crystal Frequency-Nom
20MHz

Length
4.4mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 843S1066CGLF.

Datasheets:

integrateddevicetechnology-843s1066cglf-datasheets-4068.pdf

843S1066CGLF Overview

Clock generator is packaged in the way of Bulk. Clock PLL is embedded in the TSSOP package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 8 terminations can be found in frequency generators. The supply voltage of 3.3V allows for high efficiency. Crystal is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 1.6GHz is the maximal value for normal operation. The maximal supply voltage (Vsup) reaches 3.465V. The uPs/uCs/Peripheral IC clock generator incoporates is CLOCK GENERATOR, OTHER. Clock PLL is equipped with 8 pin count. Clock generator is designed with 8 pins. The operating temperature should be higher than 0°C. The operating temperature should be lower than 70°C. The supply voltage should be maintained at 3.3V for high efficiency.

843S1066CGLF Features

Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V

843S1066CGLF Applications

There are a lot of Integrated Device Technology (IDT)
843S1066CGLF Clock Generators applications.

Wireless infrastructure
Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
