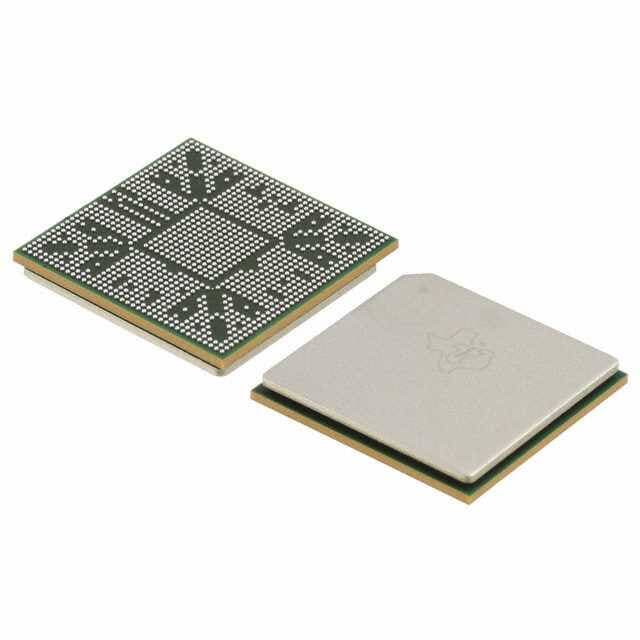

TI TMS320DM8168BCYGA2
Manufacturer No:
TMS320DM8168BCYGA2
Manufacturer:
Package:
1031-BFBGA, FCBGA
Description:
0.65mm 1V CPLD DM81x Video SOC, DaVinci? Series 320DM8168 1031 Pin 1GHz 1V 1031-BFBGA, FCBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TMS320DM8168BCYGA2 information
TI TMS320DM8168BCYGA2 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320DM8168BCYGA2.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 1031-BFBGA, FCBGA
- Number of Pins
- 1031
- Operating Temperature
- -40°C~105°C TJ
- Packaging
- Tray
- Series
- DM81x Video SOC, DaVinci?
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 4 (72 Hours)
- Type
- Digital Media System-on-Chip (DMSoC)
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Subcategory
- Digital Signal Processors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 245
- Supply Voltage
- 1V
- Terminal Pitch
- 0.65mm
- Frequency
- 1GHz
- Base Part Number
- 320DM8168
- Power Supplies
- 1V
- Interface
- EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB
- Min Supply Voltage
- 800mV
- RAM Size
- 64kB
- Bit Size
- 32
- Data Bus Width
- 16b
- Address Bus Width
- 28
- Core Architecture
- ARM
- Boundary Scan
- YES
- Low Power Mode
- YES
- Format
- FLOATING POINT
- Voltage - I/O
- 1.5V 1.8V 3.3V
- Number of UART Channels
- 3
- Barrel Shifter
- NO
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- ROM (48kB)
- Voltage - Core
- 1.00V
- On Chip Data RAM
- 1.5MB
- Clock Rate
- 1GHz DSP, 1.2GHz ARM®
- Length
- 25mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for TI TMS320DM8168BCYGA2.
TMS320DM8168BCYGA2 Overview
The 1031-BFBGA, FCBGA package contains these electronic components.Packaging way Tray is provided.The Digital Media System-on-Chip (DMSoC) family provides a wide range of applications.There is a mounting point for it along the direction of Surface Mount.At the temperature of -40°C~105°C TJ, the device is guaranteed to operate normally.In analog circuits, the analog voltage range 1.5V 1.8V 3.3V represents the voltage range that is available for input or output.DM81x Video SOC, DaVinci? series digital signal processors contain this digital signal processor.It works with a voltage of 1V as a supply voltage.In its configuration, it contains 1031 pins.Several related parts can be identified using its base part number, 320DM8168.The device operates at the frequency of 1GHz in accordance with a specific design.In order to mount it, it utiliSurface Mountes the Surface Mount method.On the basis of its specific characteristics, this device can be classified as a Digital Signal Processors device.This device operates at a voltage as low as 800mV.Devices like this can be powered by voltages up to 1.05V.There is an electric supply from 1V.In 3 UART channels, the data format and transmission speeds may be customi3ed for asynchronous serial communication.Processor core ARM adopts the ARM architecture.
TMS320DM8168BCYGA2 Features
Supplied in the 1031-BFBGA, FCBGA package
TMS320DM8168BCYGA2 Applications
There are a lot of Texas Instruments
TMS320DM8168BCYGA2 DSP applications.
- Voice recognition
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
