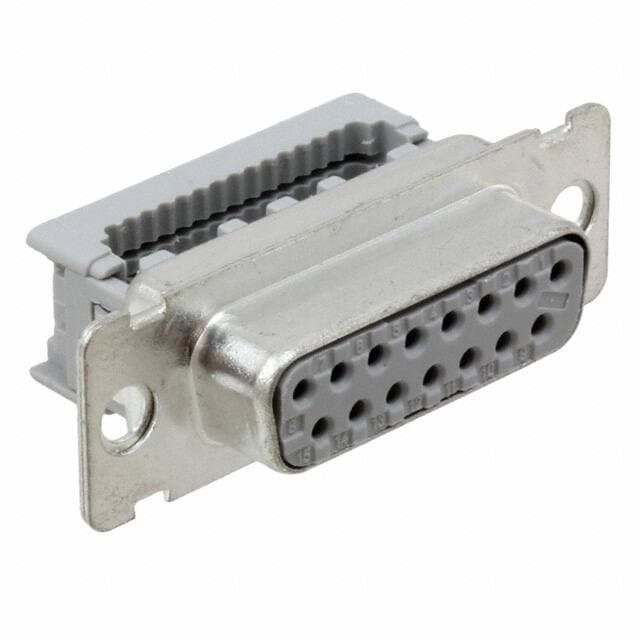

3M 8315-8000
3M 8315-8000

3M 8315-8000

Manufacturer No:

8315-8000

Manufacturer:

3M

Package:

Description:

8300 Series D-Sub Receptacle, Female Sockets 15-Position Female Signal IDC, Ribbon Cable 2 DA A Panel Mount Copper Alloy Gold Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8315-8000 information

3M 8315-8000 technical specifications, attributes, parameters and parts with similar specifications to 3M 8315-8000.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Panel
  • Mounting Type
  • Panel Mount
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Housing Material
  • Glass
  • Shell Material, Finish
  • Steel, Tin Plated
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • 8300
  • Published
  • 1997
  • Feature
  • Feed Through
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • IDC, Ribbon Cable
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 15
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Gray
  • Number of Rows
  • 2
  • Gender
  • Female
  • Contact Type
  • Signal
  • Pitch
  • 1.27mm
  • Orientation
  • Right Angle
  • Depth
  • 12.4mm
  • Current Rating
  • 1A
  • Contact Finish
  • Gold
  • Number of Contacts
  • 15
  • Housing Color
  • Grey
  • Lead Length
  • 3m
  • Wire Gauge
  • 26-28 AWG
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Connector Style
  • D-Sub
  • Cable Length
  • 3m
  • Shell Size, Connector Layout
  • 2 DA A
  • Sensing Distance
  • 3 m
  • Length
  • 39.2mm
  • Width
  • 16.6mm
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for 3M 8315-8000.

Datasheets:

ConflictMineralStatement:

8315-8000 Overview


The product is packaged in Receptacle, Female Sockets.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 8300 Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -55°C for this device.With its Feed Through feature, it is more powerful in many ways.In this case, Panel mounts the part.The device is operating at -55°C~105°C Operating Temperature.
