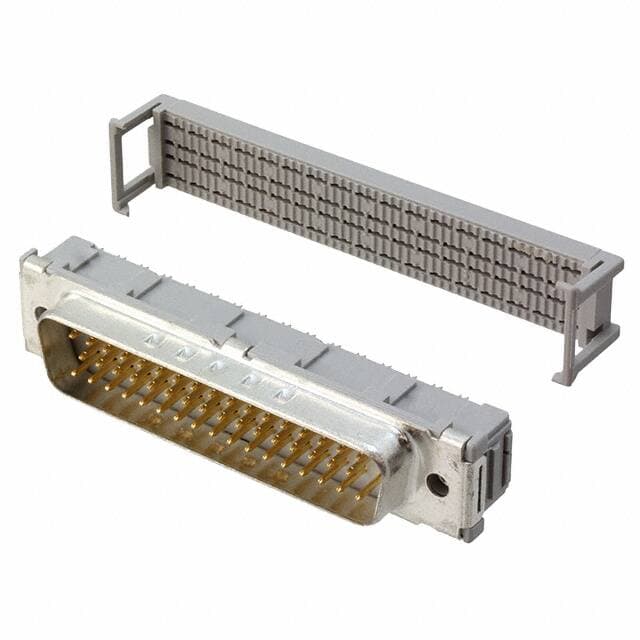

3M 8250-6005
3M 8250-6005

3M 8250-6005

Manufacturer No:

8250-6005

Manufacturer:

3M

Package:

Metal

Description:

8250 Series D-Sub Plug, Male Pins 50-Position Male Signal IDC, Ribbon Cable 5 DD D Panel Mount Copper Alloy Gold Steel, Nickel Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8250-6005 information

3M 8250-6005 technical specifications, attributes, parameters and parts with similar specifications to 3M 8250-6005.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Cable, Panel
  • Mounting Type
  • Panel Mount
  • Package / Case
  • Metal
  • Insulation Material
  • Polyester
  • Shell Material
  • Steel
  • Material
  • Steel
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Housing Material
  • Polybutylene
  • Weight
  • 453.59237g
  • Body Material
  • Metal
  • Shell Material, Finish
  • Steel, Nickel Plated
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • 8250
  • Published
  • 2008
  • Feature
  • Feed Through, Grounding Indents
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 50
  • Termination
  • IDC, Ribbon Cable
  • Connector Type
  • Plug, Male Pins
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Gray
  • Number of Rows
  • 3
  • Gender
  • Male
  • Voltage - Rated DC
  • 350V
  • Contact Type
  • Signal
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2.74mm
  • Orientation
  • Right Angle
  • Depth
  • 24.49mm
  • Current Rating
  • 1A
  • Contact Finish
  • Gold
  • Voltage - Rated AC
  • 350V
  • Approval Agency
  • UL
  • Lead Pitch
  • 2.74mm
  • Number of Contacts
  • 50
  • Housing Color
  • Grey
  • Contact Resistance
  • 20mOhm
  • Flange Feature
  • Housing/Shell (4-40)
  • Max Current Rating
  • 1A
  • Plating
  • Steel
  • Connector Style
  • D-Sub

Download datasheets and manufacturer documentation for 3M 8250-6005.

Datasheets:

ConflictMineralStatement:

8250-6005 Overview


The product comes in a package of Plug, Male Pins.Its mounting type is Panel Mount.Packaging is performed using a Tray case.It is part of the 8250 Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -55°C at all times.A device is enclosed in the packaging with the Metal.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Feed Through, Grounding Indents feature.Cable, Panel mounts the part.50 terminations are present on the chip.There is no operating temperature for the device.

8250-6005 Features


50 basic kinds of terminations
8250 series


8250-6005 Applications


There are a lot of 3M
8250-6005 D-Sub Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
