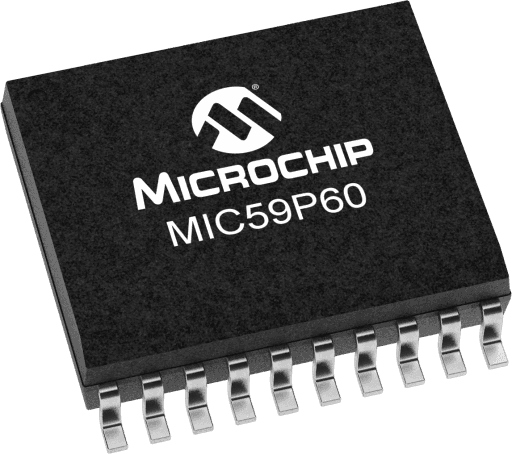

Microchip MIC59P60YWM

Manufacturer No:

MIC59P60YWM

Manufacturer:

Microchip

Package:

20-SOIC (0.295, 7.50mm Width)

Description:

8-Bit Serial Input Protected Latched Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC59P60YWM information

Microchip MIC59P60YWM technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC59P60YWM.

Type
Parameter

Type
Sink

Output Channels
8

Vout Operating (V) - Transient
80

Vout Operating (V) - Sustained
50

Iout (mA) per Channel
500

Output Structure
Darlington Open Collector

Input Structure
Serial

Minimum Data Clock (MHz)
3.3

General Description
Similar to MIC58P42, w/Added Error Flag Output

Package
20/SOIC 300mil 20/PDIP

Download datasheets and manufacturer documentation for Microchip MIC59P60YWM.

Data Sheets:

5bf102f1ca8251538921a6cff0280a06.pdf

The MIC59P60 serial-input latched driver is a high-voltage (80V), high-current (500mA) integrated circuit comprised of eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, CLOCK, SERIAL DATA INPUT, and OUTPUT ENABLE functions. Similar to the MIC5842, additional protection circuitry supplied on this device includes thermal shutdown, under voltage lockout (UVLO), and over-current shutdown. The bipolar/CMOS combination provides an extremely low-power latch with maximum interface flexibility. The MIC59P60 has open-collector outputs capable of sinking 500mA and integral diodes for inductive load transient suppression with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers can be operated with a split supply, where the negative supply is down to -20V and may be paralleled for higher load current capability. Using a 5V logic supply, the MIC59P60 will typically operate at better than 5MHz. With a 12V logic supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits. TTL circuits may require pull-up resistors. By using the serial data output, drivers may be cascaded for interface applications requiring additional drive lines. Each of these eight outputs has an independent over current shutdown of 500 mA. Upon over-current shutdown, the affected channel will turn OFF and the flag will go low until VDD is cycled or the ENABLE/RESET pin is pulsed high. Current pulses less than 2µs will not activate current shutdown. Temperatures above 165°C will shut down the device and activate the error flag. The UVLO circuit prevents operation at low VDD; hysteresis of 0.5V is provided.

3.3MHz Minimum Data-Input Rate
Output Current Shutdown (500mA Typical)
Undervoltage Lockout
Thermal Shutdown
Output Fault Flag
CMOS, PMOS, NMOS, and TTL Compatible
Internal Pull-Up/Pull-Down Resistors
Low Power CMOS Logic and Latches
High Voltage Current Sink Outputs
Output Transient-Protection Diodes
Single or Split Supply Operation
