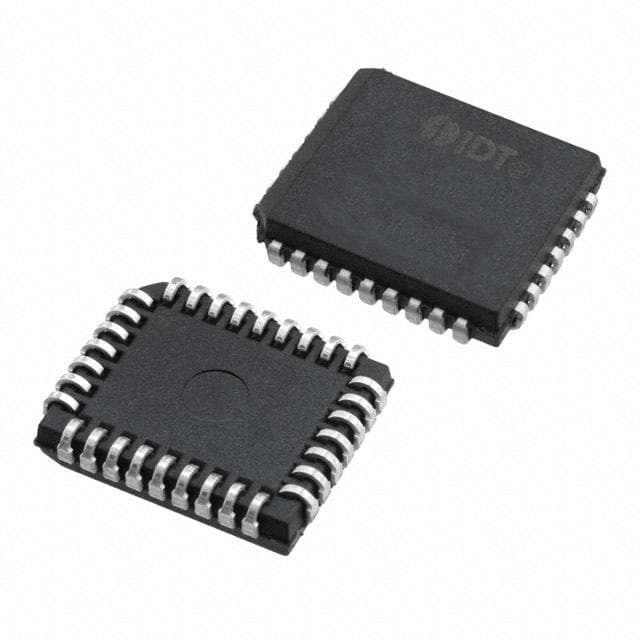

Renesas 821024JG
Renesas 821024JG

Renesas 821024JG

Manufacturer No:

821024JG

Manufacturer:

Renesas

Package:

PLCC

Description:

32 Termination 1.27mm 5V Tin CODEC 32 Pin 5V PLCC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

821024JG information

Renesas 821024JG technical specifications, attributes, parameters and parts with similar specifications to Renesas 821024JG.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Package / Case
  • PLCC
  • Number of Pins
  • 32
  • Published
  • 2003
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 32
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Codecs
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 1.27mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 32
  • Operating Supply Voltage
  • 5V
  • Power Supplies
  • 5V
  • Temperature Grade
  • INDUSTRIAL
  • Interface
  • Serial
  • Max Supply Voltage
  • 5.25V
  • Min Supply Voltage
  • 4.75V
  • Nominal Supply Current
  • 10?A
  • Operating Mode
  • SYNCHRONOUS
  • Resolution
  • 1 B
  • Number of A/D Converters
  • 4
  • Telecom IC Type
  • PCM CODEC
  • Filter
  • YES
  • Companding Law
  • A/MU-LAW
  • Gain Tolerance-Max
  • 0.35dB
  • Length
  • 13.97mm
  • Height Seated (Max)
  • 3.56mm
  • Width
  • 11.43mm
  • Thickness
  • 2.79mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas 821024JG.

Datasheets:

821024JG Overview


Due to space constraints, it is supplied in the PLCC package. In order to prevent signal reflections from off the end of the transmission line, 32 terminations are used. Essentially, it is an electronic device with 32 pins. There are 32 pins on this board. Based on the Surface Mount technology, the module is mounted to a PCB. 5.25V is the maximum value of supply voltage. Analog signals are converted to digital signals by means of 4 A/D converters. The electronic part has been classified as Codecs. Minimum supply voltage should remain at 4.75V. There is 5V supply voltage for this device. Power supplies of 5V are used to operate it. It can be operated from a voltage of 5V. 85°C is set as the maximum operating temperature to keep the system working normally. Normal operation is maintained by setting the operating temperature low at -40°C. It is expected that 10?A will flow normally through the circuit throughout its lifetime.

821024JG Features


Embedded in the PLCC package
4 A/D converters


821024JG Applications


There are a lot of Integrated Device Technology (IDT)
821024JG CODECs Interface ICs applications.
