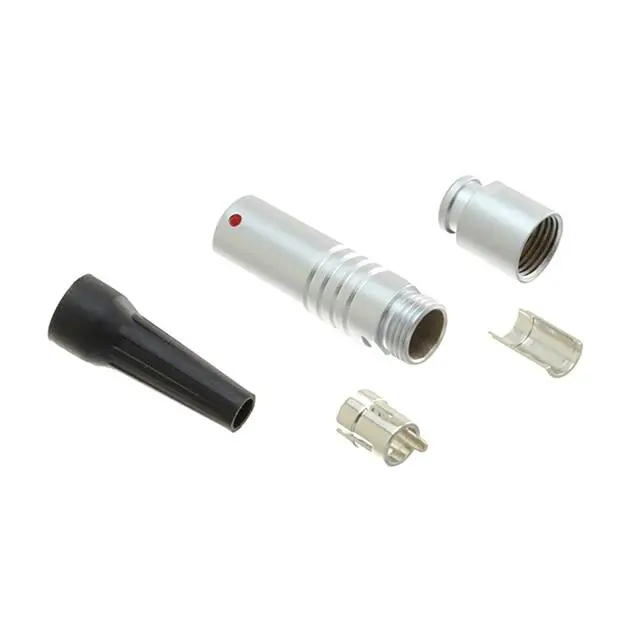

NorComp Inc. 820B002-273L501

Manufacturer No:

820B002-273L501

Manufacturer:

NorComp Inc.

Package:

Description:

Receptacle, Female Sockets Brass Free Hanging (In-Line) 2 Positions Solder Cup Gold Nickel Tray Keyed Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

820B002-273L501 information

NorComp Inc. 820B002-273L501 technical specifications, attributes, parameters and parts with similar specifications to NorComp Inc. 820B002-273L501.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Copper Alloy

Contact Plating
Gold

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Number of Pins
2

Shell Material
Brass

Insert Material
Polyphenylene Sulfide (PPS)

Backshell Material, Plating
Brass, Chrome

Operating Temperature
-40°C~200°C

Packaging
Tray

Series
QUIK-LOQ? 820B

Published
2017

Feature
Backshell, Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder Cup

Connector Type
Receptacle, Female Sockets

Number of Positions
2

Max Operating Temperature
200°C

Min Operating Temperature
-40°C

Color
Black, Silver

Applications
Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications

Voltage - Rated
430V

Contact Finish - Mating
Gold

Current Rating (Amps)
10A

Orientation
Keyed

Shielding
Shielded

Ingress Protection
IP50 - Dust Protected

Shell Finish
Nickel

Cable Opening
0.169 ~ 0.205 (4.30mm ~ 5.20mm)

Contact Finish Thickness - Mating
7.00?in 0.178?m

RoHS Status
RoHS Compliant

Ratings
IP50

Download datasheets and manufacturer documentation for NorComp Inc. 820B002-273L501.

Datasheets:

norcompinc-820b003273l501-datasheets-9994.pdf

820B002-273L501 Overview

The product comes in a package of Receptacle, Female Sockets.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the QUIK-LOQ? 820B Series.2 pins are present on the device.Use it when the temperature is below 200°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Backshell, Strain Relief feature.It is mounted by Free Hanging.It operates at an operating temperature of -40°C~200°C.

820B002-273L501 Features

QUIK-LOQ? 820B series

820B002-273L501 Applications

There are a lot of NorComp Inc.
820B002-273L501 Circular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
