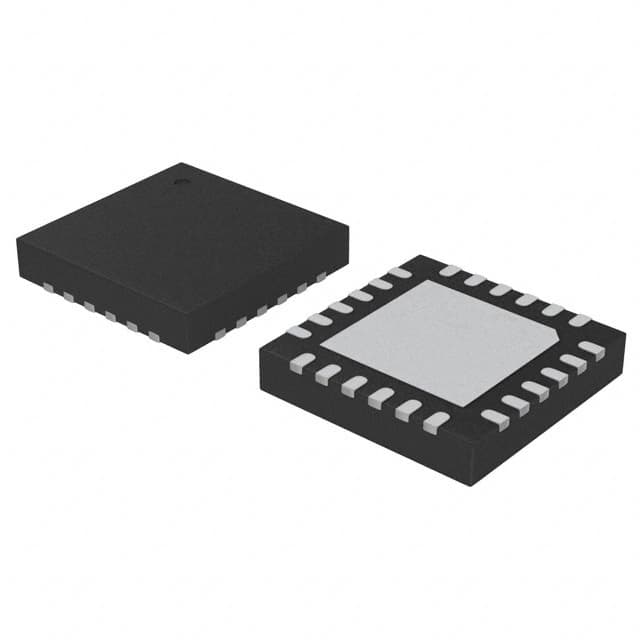

Microchip SY89843UMG

Manufacturer No:

SY89843UMG

Manufacturer:

Microchip

Package:

24-VFQFN Exposed Pad, 24-MLF®

Description:

Precision 2:1 LVPECL RPE \u0026 FSI MUX w/ 1:2 Fanout

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89843UMG information

Microchip SY89843UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89843UMG.

Type
Parameter

Description
2:2

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
1.5

Icc (mA)
100

Max Within Device Skew (ps)
20

OE
False

Input Mux
True

Buffer Type
Fanout

Fanout
1:2

Max Prop Delay (ps)
950

Download datasheets and manufacturer documentation for Microchip SY89843UMG.

Data Sheets:

46012659eb604facf9ea1356a07df8b4.pdf

User Guide:

87428f31b42da7662118ed16e79e9306.pdf

The SY89843U is a low jitter PECL, 2:1 differential input multiplexer (MUX) optimized for redundant source switchover applications. Unlike standard multiplexers, the SY89843U unique 2:1 Runt Pulse Eliminator (RPE) MUX prevents any short cycles or “runt" pulses during switchover. In addition, a unique Fail-Safe Input protection prevents metastable conditions when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops below 100mV).The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The output is 800mV, 100K compatible LVPECL with fast rise/fall times guaranteed to be less than 190ps.The SY89843U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89843U is part of Micrel's high-speed, Precision Edge® product line.

Selects between two sources, and provides a glitch-free, stable LVPECL output
Wide operating frequency: 1kHz to >1.5GHz
<880ps In-to-Out tpd
<190ps tr/tf
Unique patent-pending input isolation design minimizes crosstalk
Fail-Safe Input prevents oscillations
65fsRMS phase jitter (typ.)
<0.7psRMS MUX crosstalk induced jitter
Unique patent-pending input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
800mV LVPECL output swing
2.5V ±5% or 3.3V ±10% supply voltage
-40°C to +85°C industrial temperature range
Available in 24-pin (4mm x 4mm) QFN package
