ST 74LX1G04BJR

Manufacturer No:

74LX1G04BJR

Manufacturer:

Package:

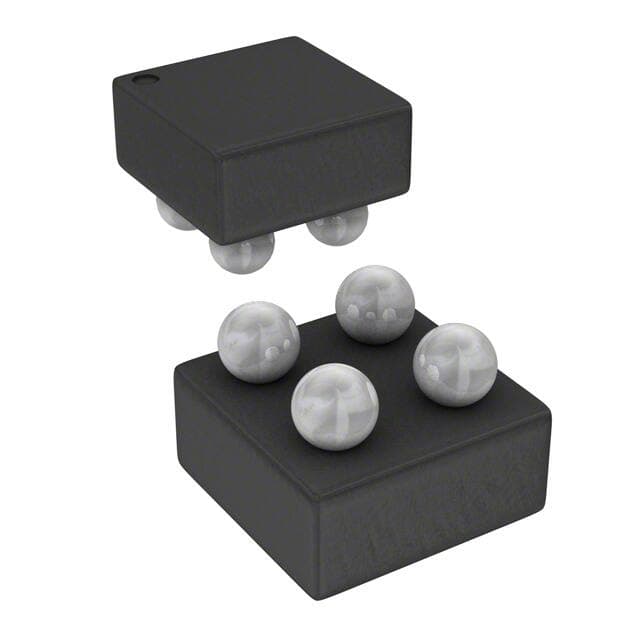

4-WFBGA, FCBGA

Description:

3.3V V 4.2 ns ns 11.5 ns ns Gates & Inverters Surface Mount Surface Mount 1.65V~5.5V V 10?A ?A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LX1G04BJR information

ST 74LX1G04BJR technical specifications, attributes, parameters and parts with similar specifications to ST 74LX1G04BJR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
4-WFBGA, FCBGA

Number of Pins
4

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
74LX

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Gates

Packing Method
TAPE AND REEL

Technology
CMOS

Voltage - Supply
1.65V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
4

Operating Supply Voltage
5V

Power Supplies
3.3V

Load Capacitance
50pF

Propagation Delay
4.2 ns

Quiescent Current
10?A

Turn On Delay Time
11.5 ns

Family
TTL/H/L

Logic Function
Buffer, Inverter

Current - Output High, Low
32mA 32mA

Logic Type
Inverter

Number of Gates
1

Max Propagation Delay @ V, Max CL
4.2ns @ 5V, 50pF

Prop. Delay@Nom-Sup
6.5 ns

Schmitt Trigger
NO

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST 74LX1G04BJR.

Datasheets:

stmicroelectronics-74lx1g04bjr-datasheets-4360.pdf

stmicroelectronics-74lx1g04bjr-datasheets-2384.pdf

stmicroelectronics-74lx1g04bjr-datasheets-2385.pdf

74LX1G04BJR Overview

The part comes in 4-WFBGA, FCBGA packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A Inverter logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.65V~5.5V. Around -55°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 32mA 32mA. This item is from the 74LX series. In total, 4 terminations have occurred. This part is equipped with 1 functions that will greatly enhance the user's experience. It is part of the TTL/H/L family of chips. 74LX1G04 can help you find device variants. Into the part body are injected 4 pins. Many applications require the use of this logic device with its Surface Mount mounting. The datasheets for the 4 pins explain the functions. Parts in quiescent state carry 10?A current. The logic device shown here is a typical Gates. It has a capacitance of 50pF when loaded. Contains the industry TAPE AND REEL method. Power supplies required for this part are specified in the datasheet as 3.3V. The operating supply voltage for the chip is specified as 5V volts, which corresponds to the chip voltage. The logic of 1 gates.

74LX1G04BJR Features

Inverter Logic Type
Operating Temperature: -55°C~125°C
TTL/H/L Family
Quiescent Current: 10?A
1 Gates

74LX1G04BJR Applications

There are a lot of STMicroelectronics
74LX1G04BJR Gates and Inverters applications.

Computer
Television
Washing machine
Range hood
Refrigerator
VCR
Massager
Fan
Illumination
Cell phone
