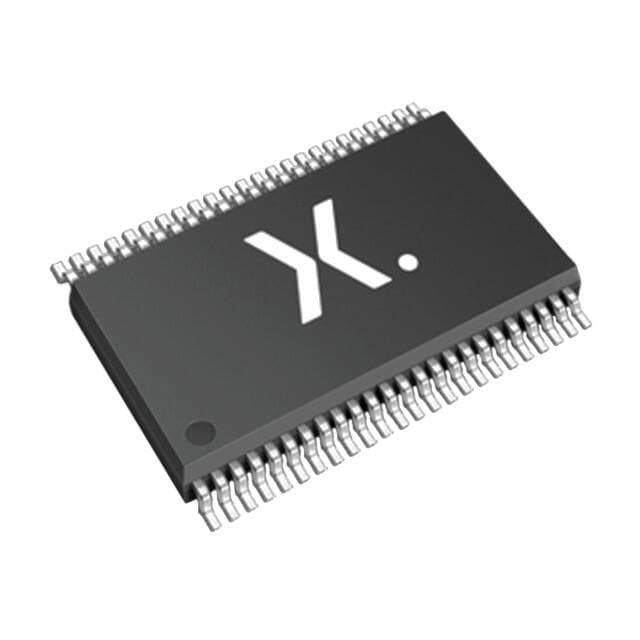

NEXPERIA 74LVTN16245BDGG,11

Manufacturer No:

74LVTN16245BDGG,11

Manufacturer:

NEXPERIA

Package:

48-TFSOP (0.240, 6.10mm Width)

Description:

DUAL Transceiver, Non-Inverting 2.7V~3.6V 3-State Buffers 74LVTN Series 74LVTN16245 48 Pins 8 Bit per Element 32mA 64mA 48-TFSOP (0.240, 6.10mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVTN16245BDGG,11 information

NEXPERIA 74LVTN16245BDGG,11 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74LVTN16245BDGG,11.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.240, 6.10mm Width)

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74LVTN

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Power Dissipation
1W

Technology
BICMOS

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Base Part Number
74LVTN16245

Pin Count
48

Output Type
3-State

Number of Elements
2

Polarity
Non-Inverting

Supply Voltage-Max (Vsup)
3.6V

Number of Channels
16

Number of Ports
2

Propagation Delay
3.3 ns

Quiescent Current
4mA

Turn On Delay Time
5.7 ns

Family
LVT

Logic Function
Inverting, Transceiver

Direction
Bidirectional

Current - Output High, Low
32mA 64mA

Logic Type
Transceiver, Non-Inverting

Number of Bits per Element
8

Width
6.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NEXPERIA 74LVTN16245BDGG,11.

74LVTN16245BDGG,11 Overview

Using a neat 48-TFSOP (0.240, 6.10mm Width) package, it works well. There is an external packaging option available for this voltage buffer. The bus transceiver is available in a Surface Mount mount design. Typical Transceiver, Non-Inverting logic circuits see a broad range of applications. Network transceivers such as this are fed with a supply voltage of 2.7V~3.6V when they are powered on. A logical driver like this is qualified to operate in a temperature range of -40°C~85°C TA. Its output current is 32mA 64mA in the high and low logic states. Currently, bus transceiver supports 3-State outputs. A total of 2 elements are used. 74LVTN series network transceivers belong to this group. A logic device such as this has 48 terminations with different functions. Supply voltage is 3.3V. Family LVT includes the buffer IC . There are 48 pins set with the electric component. Surface Mount applications are possible with digital buffer. The connector has 48 pins. A total of 2 ports are available on this bus transceiver. Each element in the network transceiver contains 8 bits. To find other related electronic parts, search 74LVTN16245. A quiescent electronic part uses 4mA. This electronic part should be operated safely and steadily in a circuit by applying 3.3V supply voltage. 16 channels ensure high-quality communication with this logic IC.
