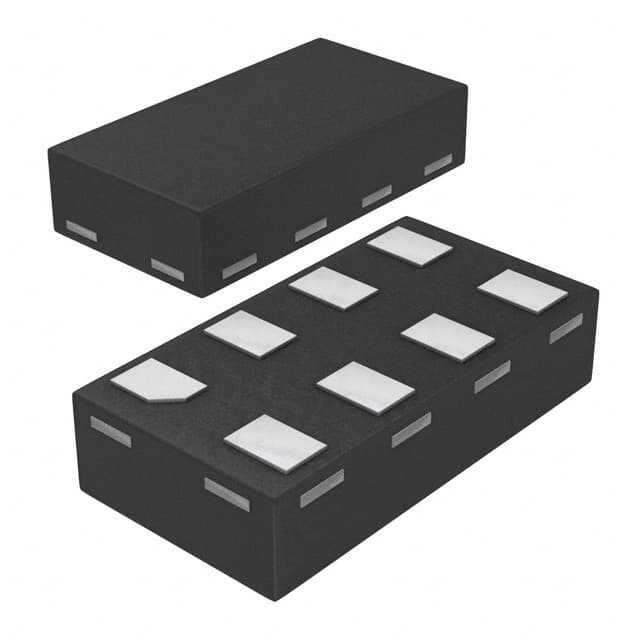

DIODES 74LVC2G126HD4-7

Manufacturer No:

74LVC2G126HD4-7

Manufacturer:

DIODES

Package:

X2-DFN2010-8

Description:

Description: Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8, X2-DFN2010-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC2G126HD4-7 information

DIODES 74LVC2G126HD4-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES 74LVC2G126HD4-7.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
DIODES INC

Package Description
X2-DFN2010-8

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
8 Weeks

Samacsys Manufacturer
Diodes Incorporated

Family
LVC/LCX/Z

JESD-30 Code
R-PDSO-N8

JESD-609 Code
e4

Length
2 mm

Logic IC Type
BUS DRIVER

Number of Bits
1

Number of Functions
2

Number of Ports
2

Number of Terminals
8

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Output Characteristics
3-STATE

Output Polarity
TRUE

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
260

Propagation Delay (tpd)
12.3 ns

Seated Height-Max
0.4 mm

Supply Voltage-Max (Vsup)
5.5 V

Supply Voltage-Min (Vsup)
1.65 V

Supply Voltage-Nom (Vsup)
3.3 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
AUTOMOTIVE

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
DUAL

Width
1 mm

Download datasheets and manufacturer documentation for DIODES 74LVC2G126HD4-7.

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

74LVC2G126HD4-7 Overview

This package uses 8-XFDFN. A logical driver using the Tape & Reel (TR) external packaging is used in this application. Buffers like this are available in the Surface Mount-mount form factor. Buffer, Non-Inverting logic integrated circuits see a wide range of applications, as shown here. There is a supply voltage of 1.65V~5.5V applied to this ethernet transceiver in order to power it. In ambient temperatures up to -40°C~125°C TA, this voltage buffer is designed to operate. There is a 32mA 32mA output current for the high and low logic states. A total of 3-State outputs can be dealt with by transceiver. It is necessary to use all 2 elements. A transceiver of the 74LVC series, it belongs to the 74LVC series. Thebuffer features 8 terminations that serve different purposes. 1.8V is the required supply voltageThis electronic part is part of the LVC/LCX/Z family of parts. The transceiver features 2 ports for enhanced functionality. Each element uses 1 bits.

74LVC2G126HD4-7 Features

74LVC2G126HD4-7 Applications

There are a lot of Diodes Incorporated
74LVC2G126HD4-7 Buffers & Transceivers applications.
