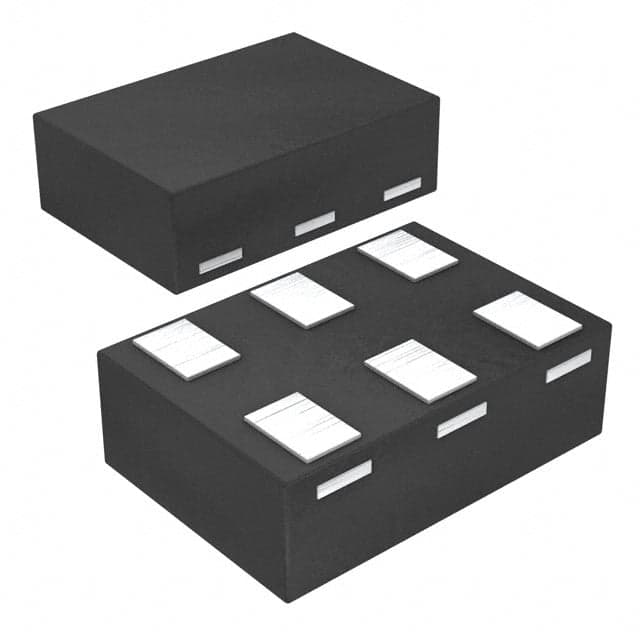

TI 74LVC1G3157DRYRG4

Manufacturer No:

74LVC1G3157DRYRG4

Manufacturer:

Package:

6-UFDFN

Description:

5.7ns, 3.8ns SPDT 15Ohm DUAL Analog Switches BREAK-BEFORE-MAKE 74LVC1G3157 6 Pins 2.3V 6-UFDFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC1G3157DRYRG4 information

TI 74LVC1G3157DRYRG4 technical specifications, attributes, parameters and parts with similar specifications to TI 74LVC1G3157DRYRG4.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
12 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-UFDFN

Number of Pins
6

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Resistance
15Ohm

Subcategory
Multiplexers or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
6

Number of Outputs
2

Qualification Status
Not Qualified

Power Supplies
3.3V

Number of Channels
1

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.65V

Operating Supply Current
1?A

Nominal Supply Current
1?A

Max Supply Current
10?A

Propagation Delay
300 ps

Turn On Delay Time
5.7 ns

Supply Type
Single

Bandwidth
300MHz

Turn-Off Delay Time
3.8 ns

On-State Resistance (Max)
15Ohm

High Level Output Current
128mA

Low Level Output Current
128mA

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
57 dB

Channel Capacitance (CS(off), CD(off))
5.2pF

On-state Resistance Match-Nom
0.1Ohm

Download datasheets and manufacturer documentation for TI 74LVC1G3157DRYRG4.

74LVC1G3157DRYRG4 Overview

The electrical component comes in 6-UFDFN packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. In Surface Mount, you'll find this switch device. In the multiplexer and demultiplexer, 2:1 represents the number of circuits. Operating temperature around -40°C~85°C TA extended. In total, 6 terminations have occurred. A electrical component with 1 channels is capable of high-quality output. When the electronic component is given a voltage of 2.3V, it should be turned on and run. Into the electrical component body are injected 6 pins. On the other hand, analog switches can be constructed using SPDT switching circuits. Circuits number 1 make up this analogue multiplexer. Look for analog switch ic variants by searching with 74LVC1G3157. A 15Ohm internal resistance characterizes this multiplexer. The datasheets for the 6 pins explain the functions. The analog multiplexer shown here is a typical Multiplexers or Switches. An abnormal situation would be for the switch device to be supplied with a voltage greater than 5.5V. A analog switch ic that has a cost-effective Single supply type. It is recommended to use 1.65V as the lowest voltage for the electrical part. The analogue multiplexer could operate on 1?A current. Analogue multiplexers require a 1.65V~5.5V voltage to drain from a single voltage supply. A voltage higher than 10?A may cause damage to the switch multiplexer. It is possible to transfer data over a 300MHz-bandwidth. This digital multiplexer has 2 outputs.

74LVC1G3157DRYRG4 Features

1 Channels
Switch Circuit: SPDT
1?A Supply Current
Bandwidth: 300MHz

74LVC1G3157DRYRG4 Applications

There are a lot of Texas Instruments
74LVC1G3157DRYRG4 Analog Switches & Multiplexers ICs applications.

Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
