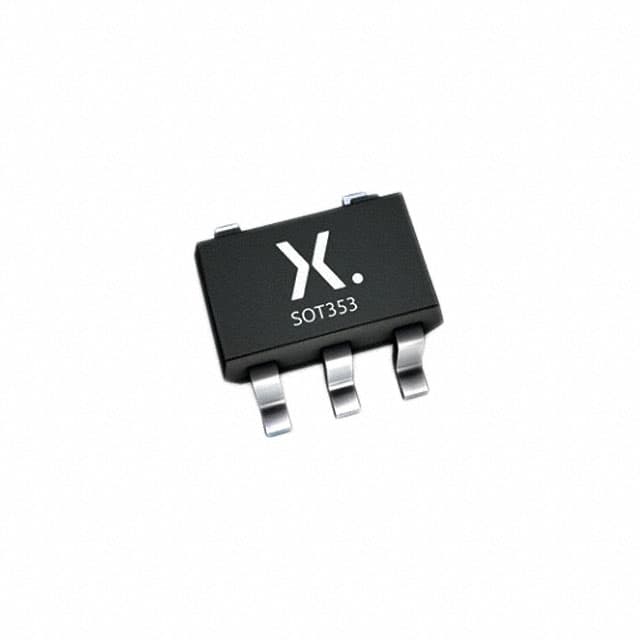

NEXPERIA 74HCT1G04GW-Q100H

Manufacturer No:

74HCT1G04GW-Q100H

Manufacturer:

NEXPERIA

Package:

5-TSSOP, SC-70-5, SOT-353

Description:

2.05mm mm Gates & Inverters Surface Mount Surface Mount 4.5V~5.5V V 20?A ?A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74HCT1G04GW-Q100H information

NEXPERIA 74HCT1G04GW-Q100H technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74HCT1G04GW-Q100H.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 5-TSSOP, SC-70-5, SOT-353
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 74HCT
  • Published
  • 2005
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Technology
  • CMOS
  • Voltage - Supply
  • 4.5V~5.5V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.65mm
  • Base Part Number
  • 74HCT1G04
  • Pin Count
  • 5
  • JESD-30 Code
  • R-PDSO-G5
  • Operating Supply Voltage
  • 5V
  • Number of Circuits
  • 1
  • Family
  • HCT
  • Number of Inputs
  • 1
  • Current - Output High, Low
  • 2mA 2mA
  • Logic Type
  • Inverter
  • Max Propagation Delay @ V, Max CL
  • 10ns @ 4.5V, 50pF
  • Propagation Delay (tpd)
  • 27 ns
  • Logic Level - Low
  • 0.8V
  • Logic Level - High
  • 2V
  • Length
  • 2.05mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA 74HCT1G04GW-Q100H.

PCN Packaging:

RohsStatement:

74HCT1G04GW-Q100H Overview


This part is conveniently packaged in 5-TSSOP, SC-70-5, SOT-353, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). Inverter logic governs its operation. Voltage 4.5V~5.5V ensures the part's full functionality. Operation at a temperature around -40°C~125°C. A Surface Mount mount is used for this part. Current output is 2mA 2mA in both the high and low states. The number 74HCT refers to it. In total, there have been 5 terminations. A significant improvement in the user experience can be achieved by the part since it has 1 functions. There is a chip in this package that is a part of HCT. Search with 74HCT1G04 if you are looking for device variants. An injection of 5 pins is performed into the body of the part. It is widely used in a variety of applications due to its Surface Mount mounting. As of 1, the part supports 1 inputs. Parts that are quiescent have 20?A current flowing through them. 1 circuits are used in this device. It is specified in the operating instructions of the chip that the operating voltage will be 5V volts.

74HCT1G04GW-Q100H Features


Inverter Logic Type
Operating Temperature: -40°C~125°C
HCT Family
Quiescent Current: 20?A


74HCT1G04GW-Q100H Applications


There are a lot of Nexperia USA Inc.
74HCT1G04GW-Q100H Gates and Inverters applications.


  • VCD
  • Computer
  • Television
  • Washing machine
  • Range hood
  • Refrigerator
  • VCR
  • Massager
  • Fan
  • Illumination
