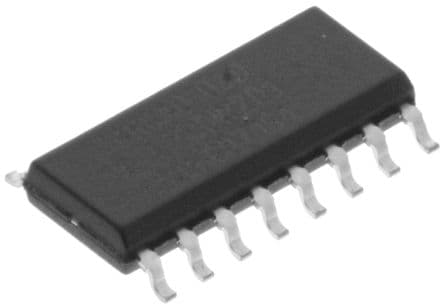

NEXPERIA 74HC40103D

Manufacturer No:

74HC40103D

Manufacturer:

NEXPERIA

Package:

SOP-16

Description:

Binary Counter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74HC40103D information

NEXPERIA 74HC40103D technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74HC40103D.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
NEXPERIA

Package Description
SOP-16

Reach Compliance Code
compliant

HTS Code
8542.39.00.01

Date Of Intro
1991-01-01

Additional Feature
TCO OUTPUT; RESET TO MAX COUNT

Count Direction
DOWN

Family
HC/UH

JESD-30 Code
R-PDSO-G16

JESD-609 Code
e4

Length
9.9 mm

Load/Preset Input
YES

Logic IC Type
BINARY COUNTER

Mode of Operation
SYNCHRONOUS

Moisture Sensitivity Level
1

Number of Bits
8

Number of Functions
1

Number of Terminals
16

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
SOP

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Propagation Delay (tpd)
450 ns

Seated Height-Max
1.75 mm

Supply Voltage-Max (Vsup)
6 V

Supply Voltage-Min (Vsup)
2 V

Supply Voltage-Nom (Vsup)
5 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
AUTOMOTIVE

Terminal Finish
NICKEL PALLADIUM GOLD SILVER

Terminal Form
GULL WING

Terminal Pitch
1.27 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
30

Trigger Type
POSITIVE EDGE

Width
3.9 mm

fmax-Min
12 MHz

Download datasheets and manufacturer documentation for NEXPERIA 74HC40103D.

Datasheets:

NEXP-S-A0003511060-1.pdf

74HC40103D Overview

SOis a package in which this device is packaged. There are 16 terminations used for its configuration. 5Vis enabled to operate in an extremely flexible manner due to its supply voltage. In wires, 1elements are connected. A circuit is connected to other components by 16pins. To mount it, use the method of [0]. The HC/UHfamily includes it. This device contains information in 8bits. In regard to this electronic device, TCO OUTPUT; RESET TO MAX COUNTare essential features. The device has a temperature grade of AUTOMOTIVE. The device operates at 125°Cfor extended periods with acceptable stability of electrical characteristics. Generally, the temperature range of the device is set at -40°C. A frequency of 35MHzis used for operation. There is a maximum voltage of 6Vavailable for the device. There is a minimum voltage available for the device of 2V.

74HC40103D Features

Embedded in the SO package
TCO OUTPUT; RESET TO MAX COUNT
Frequency of 35MHz

74HC40103D Applications

There are a lot of Nexperia
74HC40103D Counters & Dividers applications.

Signal gating
Frequency dividing circuits
Time delay circuits
Communications Digital Frequency Synthesizers;
VHF, UHF, FM, AM, etc.
Fixed or Programmable Frequency Division
Time Out Timer for Consumer-Application Industrial Controls
Timing applications
Clocks
Up Counters
