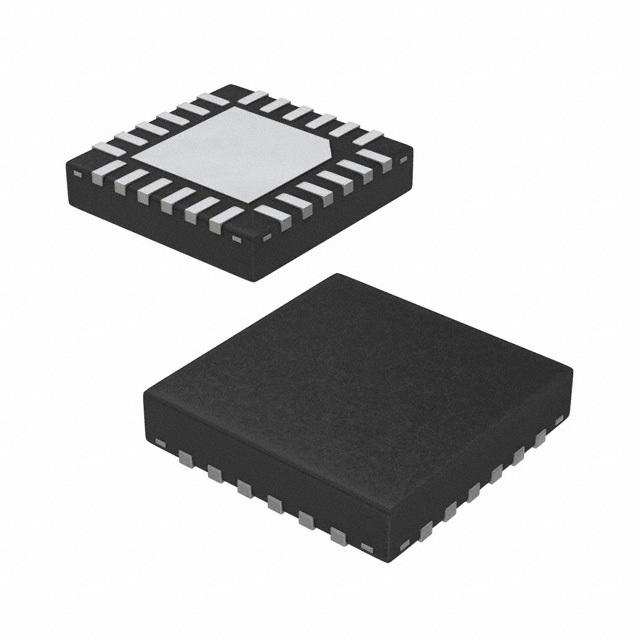

Renesas ISL6423BERZ

Manufacturer No:

ISL6423BERZ

Manufacturer:

Renesas

Package:

QFN EP

Description:

0.5mm PMIC 24 440kHz 12V QFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6423BERZ information

Renesas ISL6423BERZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6423BERZ.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
QFN EP

Number of Pins
24

Published
2002

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-20°C

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.5mm

Frequency
440kHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Number of Outputs
1

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Temperature Grade
COMMERCIAL EXTENDED

Max Supply Voltage
14V

Min Supply Voltage
8V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
750mA

Voltage - Output
19.3V

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
8mA

Nominal Input Voltage
14V

Switcher Configuration
BOOST

Length
4mm

Width
4mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6423BERZ.

Datasheets:

intersil-isl6423berz-datasheets-3098.pdf

ISL6423BERZ Overview

The package is in a QFN EP case. Basically, the voltage regulator chip is made up of 24 terminations. There is an output current of 750mA on this regulator. The total number of pins in the regulator is 24. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. Several pins on the chip are 24-shaped. An example of this type of component would be a Power Management Circuits component. Whenever the temperature is less than 85°C, it is recommended that you use it. The chip is operated at a maximum operating temperature of -20°C. As a general rule, this regulator IC outputs 19.3V volts on a system basis. The top supply voltage can be set to 14V volts. This IC regulator is equipped with an analog IC called SWITCHING CONTROLLER.

ISL6423BERZ Features

Power Management Circuits subtageroy
The maximum operating temperature of -20°C

ISL6423BERZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6423BERZ Linear Voltage Regulators applications.

Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
