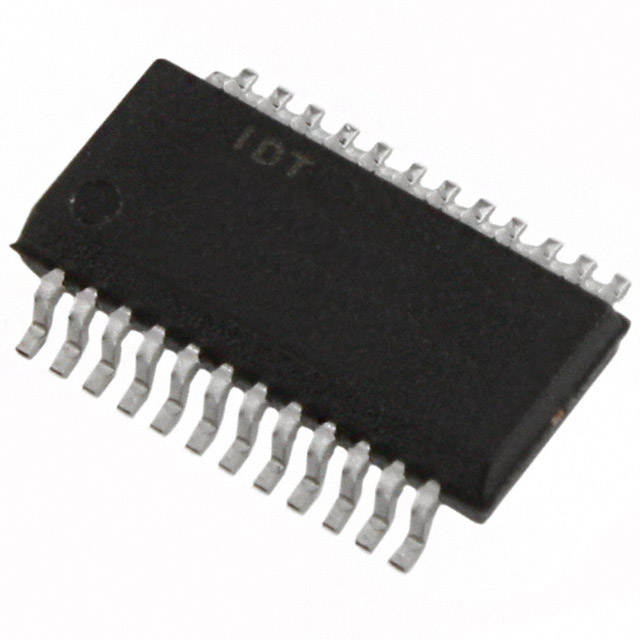

Renesas 74FCT543ATQG

Manufacturer No:

74FCT543ATQG

Manufacturer:

Renesas

Package:

QSOP

Description:

DUAL Buffers 24 Pins 8 Bit per Element QSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74FCT543ATQG information

Renesas 74FCT543ATQG technical specifications, attributes, parameters and parts with similar specifications to Renesas 74FCT543ATQG.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
24

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Elements
1

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Number of Ports
2

Nominal Supply Current
10?A

Propagation Delay
6.5 ns

Quiescent Current
10?A

Turn On Delay Time
9 ns

Family
FCT

Logic Function
Inverting, Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Logic IC Type
REGISTERED BUS TRANSCEIVER

Max I(ol)
0.064 A

Number of Bits per Element
8

High Level Output Current
64mA

Low Level Output Current
15mA

Control Type
INDEPENDENT CONTROL

Download datasheets and manufacturer documentation for Renesas 74FCT543ATQG.

Datasheets:

integrateddevicetechnology-74fct543atqg-datasheets-3318.pdf

74FCT543ATQG Overview

Buffer uses a neat QSOP package. All of the 1 elements are put into use. 24 terminations with different functions. It reuqires a supply voltage of 5V. This electronic component belongs to the FCT family. 24 pins are set with the electrical part. It is suitable for Surface Mount applications. It has 24 pins. Enhanced with 2 ports. The network transceiver employs 8 bits for each element. Specifically, It is a kind of Bus Driver/Transceivers. In quiescent state, the electronic component uses 10?A. It is recommended to use a 5V power supply. To run the part safely and stably in a circuit, 5V recommends users apply 5V on the lectronic component. Buffer features INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH to better serve the need. It is capable of operating under a temperature as low as -40°C. It should operate at an ambient temperature no higher than 85°C. Logical driver outputs 15mA in its low-level output mode. In high-level output mode, the electronic component may conduct 64mA of current. The voltage used to run this electrical part should be 4.75V at least. In regard to the maximum supply voltage, it is rated 5.25V. It is known as a REGISTERED BUS TRANSCEIVER logic IC. INDEPENDENT CONTROL control technology starts up the logical driver.

74FCT543ATQG Features

Bus Driver/Transceivers
INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; MASTER CONTROL FOR LATCH
High Level Output: 15mA
Low Level Output: 64mA
REGISTERED BUS TRANSCEIVER Logic IC

74FCT543ATQG Applications

There are a lot of Integrated Device Technology (IDT)
74FCT543ATQG Buffers & Transceivers applications.

Cell phones
Wireless modems
Remote controls
Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
