C&K 7101SYZQE

Manufacturer No:

7101SYZQE

Manufacturer:

C&K

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7101SYZQE information

C&K 7101SYZQE technical specifications, attributes, parameters and parts with similar specifications to C&K 7101SYZQE.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Silver

Mount
Panel, Through Hole

Mounting Type
Panel Mount

Housing Material
Stainless Steel

Body Material
Glass, Nylon, Stainless Steel

Actuator Material
Brass, Chrome Plated

Operating Temperature
-30°C~85°C

Packaging
Bulk

Series
7000

Published
2009

Feature
Epoxy Sealed Terminals

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
3

Voltage - Rated DC
28V

Current Rating (Amps)
5A AC/DC

Orientation
Straight

Depth
6.86mm

Current Rating
5A

Termination Style
Solder Lug

Voltage - Rated AC
120V

Approval Agency
UL

Circuit
SPDT

Switch Function
On-On

Panel Cutout Dimensions
Circular - 6.35mm Dia

Contact Resistance
10mOhm

Max Voltage Rating (AC)
250V

Max Current Rating
5A

Electrical Life
100,000 Cycles

Number of Poles
1

Illumination
Non-Illuminated

Max Voltage Rating (DC)
28V

Contact Current Rating
5A

Illumination Type
Illuminated, Non-Illuminated

Bushing Thread
1/4-40

Height
7mm

Length
12.7mm

Width
6.86mm

Actuator Length
10.67mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for C&K 7101SYZQE.

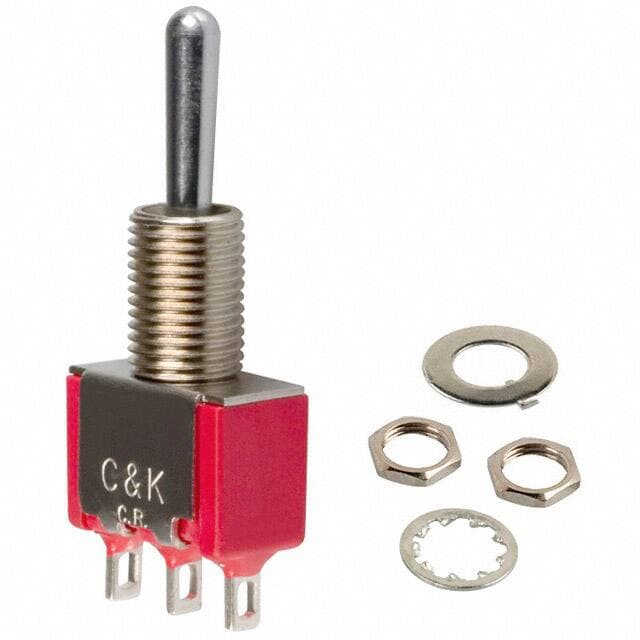

The C&K Components 7101SYZQE Toggle Switch is a single-pole double-throw (SPDT) switch designed for use in a variety of applications. This switch is rated for 5A at 120V and features a durable construction with a long life expectancy. The switch is designed with a toggle actuator for easy operation and a reliable connection. The switch is also UL and CSA approved for safety and reliability. The 7101SYZQE is a great choice for any application requiring a reliable SPDT switch.
