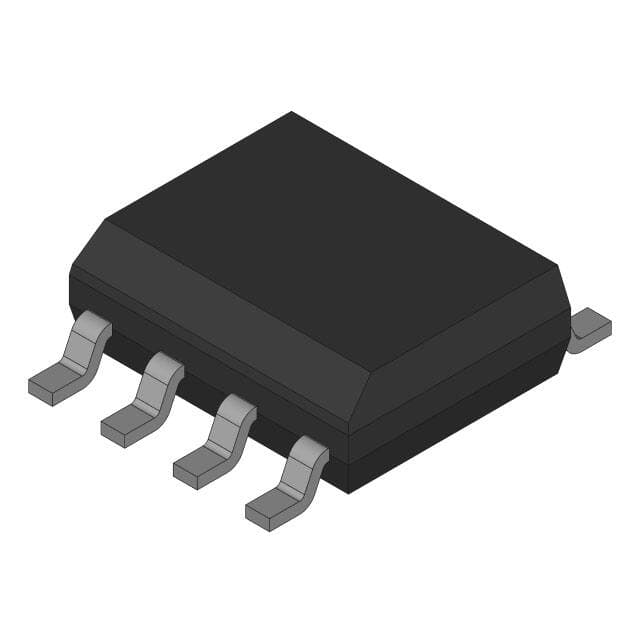

Rochester EL2270CS-T13
Manufacturer No:
EL2270CS-T13
Manufacturer:
Package:
Description:
8 Terminations 1.5V~6V Video Amps Modules EL2270 Series 2 Functions 800V/?s
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL2270CS-T13 information
Rochester EL2270CS-T13 technical specifications, attributes, parameters and parts with similar specifications to Rochester EL2270CS-T13.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Surface Mount
- YES
- Supplier Device Package
- 8-SOP
- Packaging
- Bulk
- Series
- EL2270
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- NOT SPECIFIED
- Number of Terminations
- 8
- Terminal Finish
- TIN LEAD
- Applications
- Current Feedback
- Additional Feature
- IT CAN ALSO OPERATE WITH 3V TO 12V SINGLE SUPPLY
- Technology
- BIPOLAR
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 2
- Terminal Pitch
- 1.27mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 8
- JESD-30 Code
- R-PDSO-G8
- Qualification Status
- COMMERCIAL
- Operating Temperature (Max)
- 85°C
- Output Type
- Differential
- Supply Voltage-Max (Vsup)
- 6V
- Temperature Grade
- INDUSTRIAL
- Supply Voltage-Min (Vsup)
- 1.5V
- Number of Channels
- 1
- Current - Supply
- 1mA
- Slew Rate
- 800V/?s
- Voltage - Supply, Single/Dual (±)
- 1.5V~6V
- Bandwidth
- 70000 kHz
- Current - Output / Channel
- 55mA
- -3db Bandwidth
- 70MHz
- Consumer IC Type
- VIDEO AMPLIFIER
- Length
- 4.9mm
- Height Seated (Max)
- 1.75mm
- RoHS Status
- RoHS Compliant
