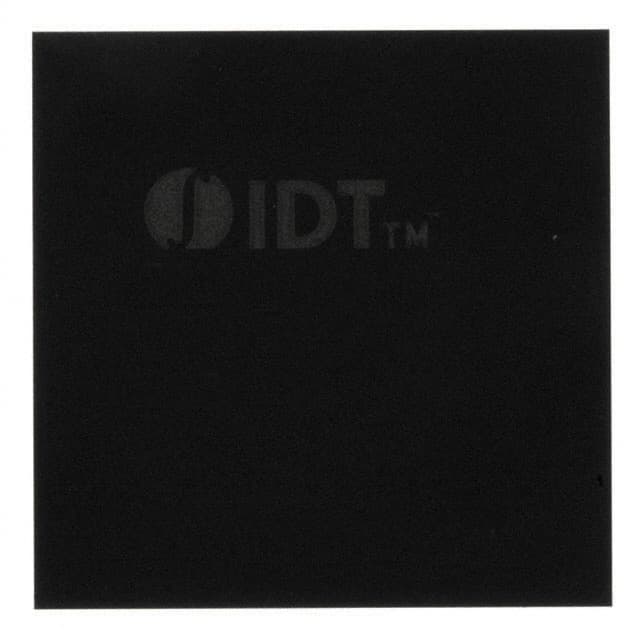

Renesas 70V3569S6BFG

Manufacturer No:

70V3569S6BFG

Manufacturer:

Renesas

Package:

Description:

2.5/3.33.3V V 208 Pin Memory IC 15mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V3569S6BFG information

Renesas 70V3569S6BFG technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V3569S6BFG.

Type
Parameter

Factory Lead Time
7 Weeks

Surface Mount
YES

Number of Pins
208

Published
2014

JESD-609 Code
e1

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
208

ECCN Code
3A991.B.2.B

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
208

Supply Voltage-Max (Vsup)
3.45V

Power Supplies
2.5/3.33.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3.15V

Interface
Parallel

Number of Ports
2

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Clock Frequency
83MHz

Supply Current-Max
0.31mA

Organization
16KX36

Output Characteristics
3-STATE

Memory Width
36

Standby Current-Max
0.015A

Memory Density
589824 bit

Access Time (Max)
6 ns

I/O Type
COMMON

Standby Voltage-Min
3.15V

Length
15mm

Height Seated (Max)
1.7mm

Width
15mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 70V3569S6BFG.

Datasheets:

integrateddevicetechnology-70v3569s6bfg-datasheets-8120.pdf

70V3569S6BFG Overview

A RAM, SRAM-type memory can be classified as the memory type of this device. A total of 208 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3.3V will be necessary. A clock frequency rotation within 83MHz is used for the ic memory chip to rotate data. A 208-pin package containing this memory device is used to house this device. The memory device in question has 208 pins, thus indicating that it has 208 memory locations that can be accessed. This chip features all the merits of a conventional chip, but it also features PIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE to improve system performance. 2 ports allow read/write access to one memory address in this chip. As for power supplies, this memory chip requires just 2.5/3.33.3V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. In order to operate your device, you will need to provide a maximum supply current of 0.31mA. Usually, this memory ics falls under the SRAMs component category.

70V3569S6BFG Features

208 Pins
Additional Feature:PIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE
I/O Type: COMMON

70V3569S6BFG Applications

There are a lot of Integrated Device Technology (IDT)
70V3569S6BFG Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
