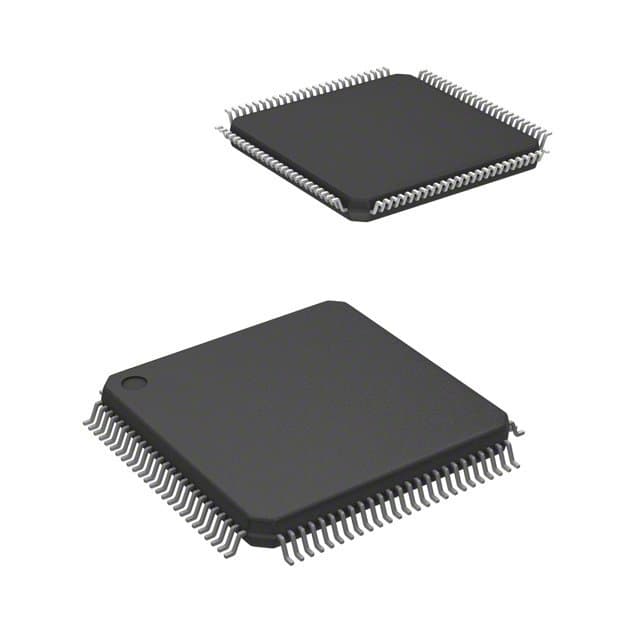

Renesas 709289L7PF

Manufacturer No:

709289L7PF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 100 Pin Memory IC 1 Mb kb 14mm mm 465mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

709289L7PF information

Renesas 709289L7PF technical specifications, attributes, parameters and parts with similar specifications to Renesas 709289L7PF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
45.45MHz

Time@Peak Reflow Temperature-Max (s)
20

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
128kB

Number of Ports
2

Nominal Supply Current
465mA

Memory Type
RAM, SDR, SRAM

Access Time
7 ns

Organization
64KX16

Output Characteristics
3-STATE

Address Bus Width
32b

Density
1 Mb

Standby Current-Max
0.003A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
16b

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Download datasheets and manufacturer documentation for Renesas 709289L7PF.

Datasheets:

integrateddevicetechnology-709289l7pf-datasheets-6675.pdf

integrateddevicetechnology-709289l7pf-datasheets-6130.pdf

709289L7PF Overview

There is a RAM, SDR, SRAM memory type associated with this device. There is a TQFP case embedded in it. 128kB is the chip's memory size. The chip is terminated with 100 terminations. In total, this part supports 1 functions. Memory devices such as this one are designed to be powered by 5V and should be used as such. There are 100 pins on the package of the memory device. A memory device with 100 pins means that it contains 100 memory locations, indicating that it has 100 pins. This memory's operating supply voltage is 5V. Using Surface Mount mounting, this chip offers straightforward and high-efficiency mounting. It is rated for a nominal supply current of 465mA for this memory component. Despite all the merits of this chip, it also has FLOW-THROUGH OR PIPELINED ARCHITECTURE to boost system performance. This memory chip has 2 ports for accessing one memory address via read or write. Power supplies for this memory chip are merely 5V . There are COMMON-bit addresses mapped into the memory for I/O ports on this device. This device must not operate below 0°C . Ideally, this memory ics should be operated at a temperature of no more than 70°C°C. SRAMs-types are usually considered to be this component. In order for this part to work properly, there must be a minimum voltage supply of 4.5V volts. Its operating voltage shall not exceed 5.5V. There is a frequency of 45.45MHz for the data to be processed on this memory chip.

709289L7PF Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:5V
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 45.45MHz
45.45MHz terminals

709289L7PF Applications

There are a lot of Integrated Device Technology (IDT)
709289L7PF Memory applications.

mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
