ONSEMI NCV8501PDW100G

Manufacturer No:

NCV8501PDW100G

Manufacturer:

ONSEMI

Package:

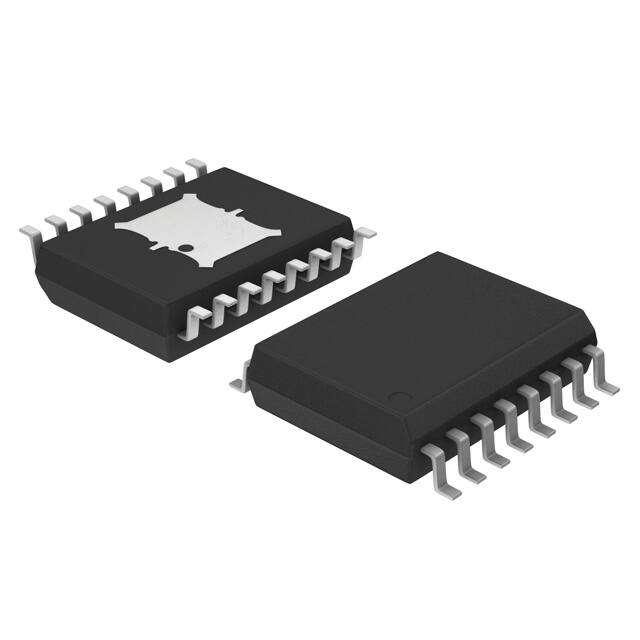

16-SOIC (0.295, 7.50mm Width) Exposed Pad

Description:

Enable, Reset Fixed NCV8501 PMIC Automotive, AEC-Q100 Series 16 16-SOIC (0.295, 7.50mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCV8501PDW100G information

ONSEMI NCV8501PDW100G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCV8501PDW100G.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 2 weeks ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.295, 7.50mm Width) Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~150°C

Packaging
Tube

Series
Automotive, AEC-Q100

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Subcategory
Other Regulators

Packing Method
RAIL

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

Current - Supply (Max)
19mA

Number of Outputs
1

Voltage - Input (Max)
45V

Output Voltage
5V

Output Type
Fixed

Max Output Current
150mA

Output Configuration
Positive

Quiescent Current
125μA

Control Features
Enable, Reset

Accuracy
2 %

Output Voltage 1
10V

Voltage - Output (Min/Fixed)
10V

Number of Regulators
1

Min Input Voltage
-15V

Protection Features
Over Temperature, Reverse Polarity, Short Circuit

Current - Quiescent (Iq)
150μA

Voltage Dropout (Max)
0.6V @ 150mA

Dropout Voltage
400mV

Dropout Voltage1-Nom
0.4V

Voltage Tolerance-Max
3%

Min Current Limit
151mA

Input Bias Current
90μA

Download datasheets and manufacturer documentation for ONSEMI NCV8501PDW100G.

Datasheets:

onsemiconductor-ncv8501dadjr2g-datasheets-3562.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCV8501PDW100G Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 16-SOIC (0.295, 7.50mm Width) Exposed Pad case. On the Linear IC itself, there are 16 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~150°C degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 16 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 16 pins. For your information, the basic part number for this regulator IC is NCV8501. In this case, we have a typical Other Regulators component. RAIL is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 150mA. It operates in the 125μA Quiescent Current state. This IC regulator is a part of the Automotive, AEC-Q100 Series of devices.

NCV8501PDW100G Features

400mV dropout voltage
Other Regulators subtageroy
RAIL method of packing

NCV8501PDW100G Applications

There are a lot of ON Semiconductor
NCV8501PDW100G Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
