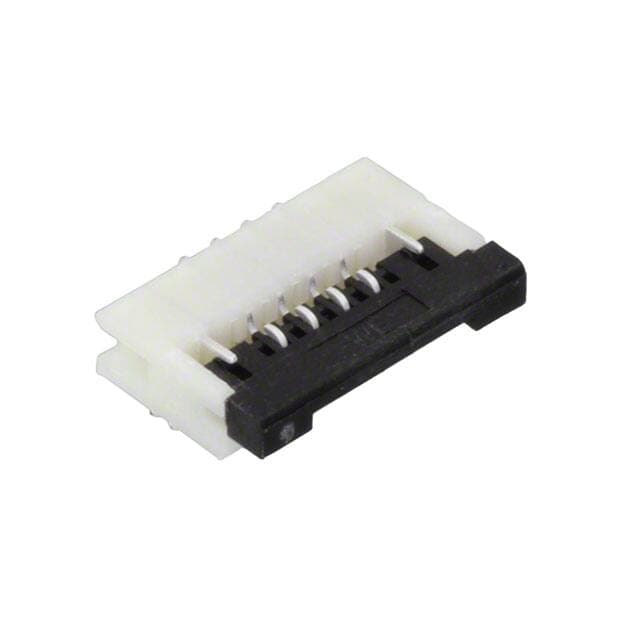

WURTH 686104148922
WURTH 686104148922

WURTH 686104148922

Manufacturer No:

686104148922

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FFC, FPC Contacts, Bottom Cut Tape (CT) 0.039 1.00mm Solder 4 Positions Surface Mount, Right Angle Tin -40°C~105°C 1A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

686104148922 information

WURTH 686104148922 technical specifications, attributes, parameters and parts with similar specifications to WURTH 686104148922.

  • Type
  • Parameter
  • Factory Lead Time
  • 84 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 4
  • Housing Material
  • Polyamide (PA6T), Nylon 6T
  • Actuator Material
  • Polyamide (PA6T), Nylon 6T
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 4
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 100V
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 0.039 1.00mm
  • Orientation
  • Horizontal
  • Contact Finish
  • Tin
  • Lead Pitch
  • 1mm
  • Number of Contacts
  • 4
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 100V
  • Contact Resistance
  • 50mOhm
  • Wire/Cable Type
  • Straight
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Straight
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Black
  • Contact Finish Thickness
  • 120.0?in 3.05?m
  • Height Above Board
  • 0.087 2.20mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 686104148922.

Datasheets:

Environmental Information:

686104148922 Overview


This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Cut Tape (CT) case is necessary to package the product.There is a product in the WR-FPC Series.A total of 4 pins are available on the device.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.Part Surface Mount is mounted to the part.100V is the operating supply voltage for this memory.As a result, the device runs at -40°C~105°C Operating Temperature.

686104148922 Features


WR-FPC series


686104148922 Applications


There are a lot of Würth Elektronik
686104148922 FFC, FPC (Flat Flexible) Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
