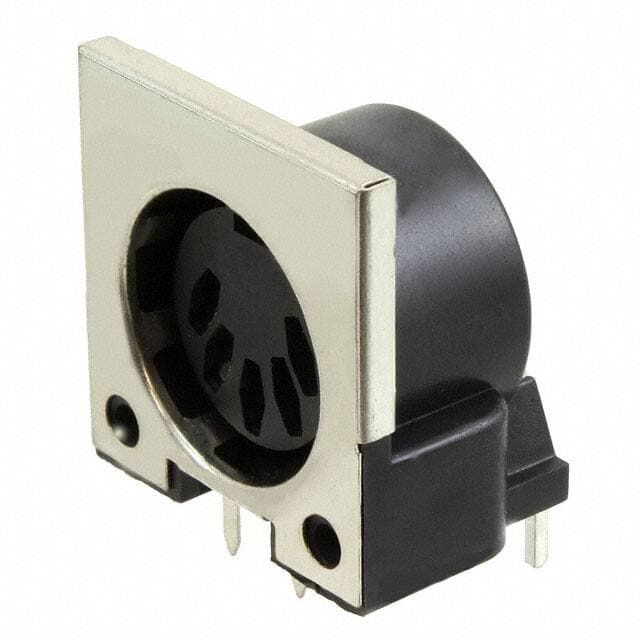

Switchcraft Inc. 57PC5FS

Manufacturer No:

57PC5FS

Manufacturer:

Switchcraft Inc.

Package:

Metal

Description:

Receptacle, Female Sockets Through Hole, Right Angle 5 Positions Solder Tin Bulk F Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

57PC5FS information

Switchcraft Inc. 57PC5FS technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 57PC5FS.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole, Right Angle

Package / Case
Metal

Insert Material
Plastic

Packaging
Bulk

Published
2002

Feature
Ground

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

Connector Type
Receptacle, Female Sockets

Number of Positions
5

Gender
Female

Voltage - Rated
34VDC

Fastening Type
Push-Pull

Subcategory
DIN Connectors

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
NO

Option
GENERAL PURPOSE

Total Number of Contacts
5

Orientation
F

Depth
15.2mm

Current Rating
3A

Shell Size - Insert
DIN 180 Degree

Reliability
COMMERCIAL

Body Breadth
0.839 inch

Contact Style
BELLOWED TYPE

Number of Ports
1

EMI Shielded
NO

Contact Pitch Circle Diameter
7mm

Height
21.3mm

Length
20.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. 57PC5FS.

57PC5FS Overview

Packaging is in the form of Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.This package contains an enclosed device in the Metal.Several benefits come from the Ground feature.There is a mounting hole at PCB, Through Hole.
