Switchcraft Inc. 57HB5F

Manufacturer No:

57HB5F

Manufacturer:

Switchcraft Inc.

Package:

Description:

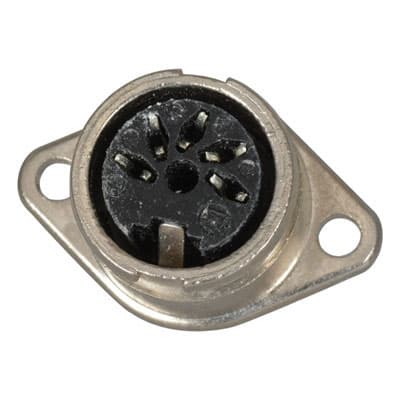

Receptacle, Female Sockets Steel Panel Mount 5 Positions Solder Eyelet(s) Tin Bulk F Push-Twist

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

57HB5F information

Switchcraft Inc. 57HB5F technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 57HB5F.

Type
Parameter

Factory Lead Time
6 Weeks

Contact Plating
Nickel, Tin

Mount
Flanges, Panel

Mounting Type
Panel Mount

Mounting Feature
Flange

Shell Material
Steel

Insert Material
Plastic

Packaging
Bulk

Published
2005

Feature
Ground

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder Eyelet(s)

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Positions
5

Gender
Female

Voltage - Rated
34VDC

Additional Feature
POLARIZED

Fastening Type
Push-Twist

Subcategory
DIN Connectors

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
YES

Option
GENERAL PURPOSE

Total Number of Contacts
5

Orientation
F

Shielding
Shielded

Current Rating
3A

Shell Size - Insert
DIN 180 Degree

Reliability
COMMERCIAL

Body Breadth
0.748 inch

Body Depth
0.472 inch

Rated Current (Signal)
3A

Contact Style
BELLOWED TYPE

Polarization Key
POLAR PIN POSITION

Number of Ports
1

Insertion Force-Max
8.0064 N

EMI Shielded
NO

Contact Pitch Circle Diameter
7mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Switchcraft Inc. 57HB5F.

57HB5F Overview

Packaging is Receptacle, Female Sockets.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.There are also other features such as POLARIZED, to name only a few.With its Ground feature, it is more powerful in many ways.In this case, Flanges, Panel mounts the part.
