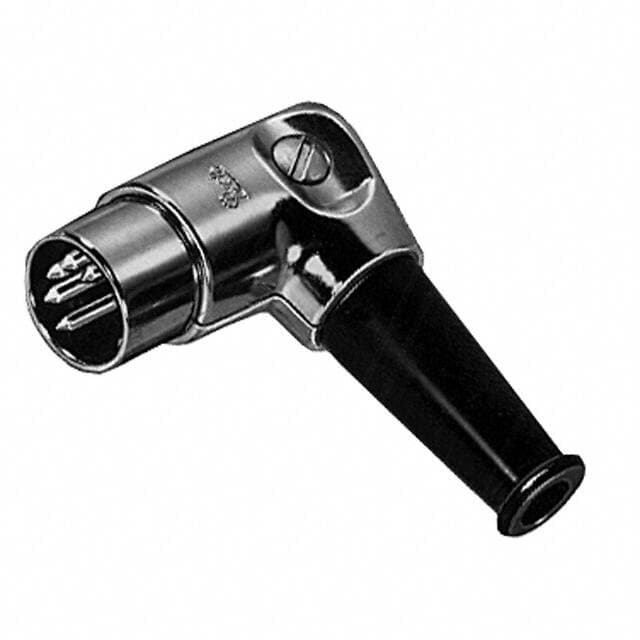

Switchcraft Inc. 05DL5M

Manufacturer No:

05DL5M

Manufacturer:

Switchcraft Inc.

Package:

Description:

Plug, Male Pins Zinc Die Cast Free Hanging (In-Line), Right Angle 5 Positions Solder Tin Nickel Bulk Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

05DL5M information

Switchcraft Inc. 05DL5M technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 05DL5M.

Type
Parameter

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line), Right Angle

Shell Material
Zinc Die Cast

Insert Material
Plastic

Packaging
Bulk

Published
1998

JESD-609 Code
e3

Feature
Backshell, Strain Relief

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
5

Color
Silver

Gender
Male

Voltage - Rated
34VDC

Additional Feature
POLARIZED

Fastening Type
Push-Pull

Subcategory
DIN Connectors

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
NO

Total Number of Contacts
5

Current Rating
3A

Shell Finish
Nickel

Shell Size - Insert
DIN 180 Degree

Reliability
COMMERCIAL

Body Length or Diameter
0.629 inch

Body Breadth
0.629 inch

Rated Current (Signal)
3A

Contact Style
RND PIN-SKT

Polarization Key
POLAR PIN POSITION

Number of Ports
1

Insertion Force-Max
8.0064 N

EMI Shielded
NO

Contact Pitch Circle Diameter
7mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Switchcraft Inc. 05DL5M.

05DL5M Overview

It comes in Plug, Male Pins packaging.The device's mounting type is Free Hanging (In-Line), Right Angle.In order to package the product, a Bulk case is used.In addition, there are other features such as POLARIZED, to mention only a few.Its Backshell, Strain Relief feature renders it more powerful in many ways.The part is mounted by Cable, Free Hanging.
