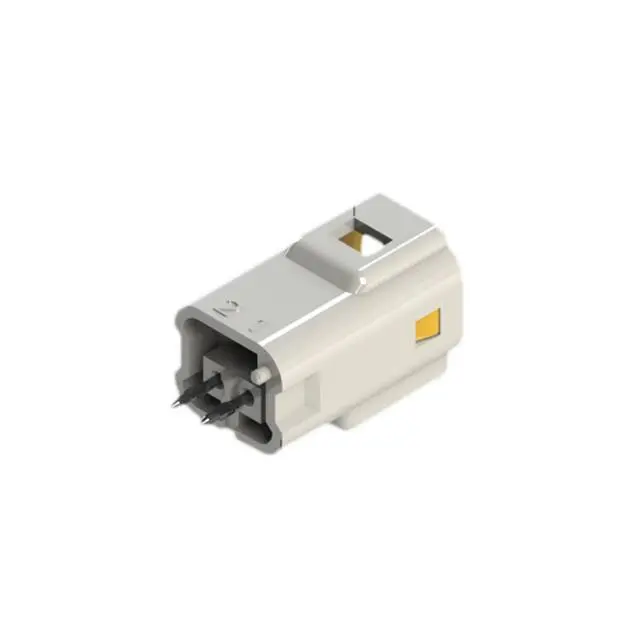

EDAC Inc. 560-002-420-101
Manufacturer No:
560-002-420-101
Manufacturer:
Package:
Description:
560 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT) 2-Position Board to Cable/Wire 0.610 15.49mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
560-002-420-101 information
EDAC Inc. 560-002-420-101 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. 560-002-420-101.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Contact Material
- Brass
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Polybutylene Terephthalate (PBT)
- Operating Temperature
- -40°C~105°C
- Packaging
- Bulk
- Series
- 560
- Published
- 2010
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Header
- Number of Positions
- 2
- Applications
- Automotive, General Purpose
- Number of Rows
- 1
- Gender
- Male
- Voltage - Rated
- 250V
- Fastening Type
- Latch Holder
- Contact Finish - Mating
- Tin
- Contact Type
- Male Pin
- Ingress Protection
- IP67
- Insulation Height
- 0.610 15.49mm
- Number of Positions Loaded
- All
- Current Rating
- 3A
- Pitch - Mating
- 0.098 2.50mm
- Insulation Color
- White
- Shrouding
- Shrouded - 4 Wall
- Height
- 15.5mm
- Material Flammability Rating
- UL94 V-0
- REACH SVHC
- Unknown
- RoHS Status
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for EDAC Inc. 560-002-420-101.
Environmental Information:
560-002-420-101 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 560 Series.There are a variety of possible applications for this device, including Automotive, General Purpose.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
560-002-420-101 Features
560 series
560-002-420-101 Applications
There are a lot of EDAC Inc.
560-002-420-101 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
