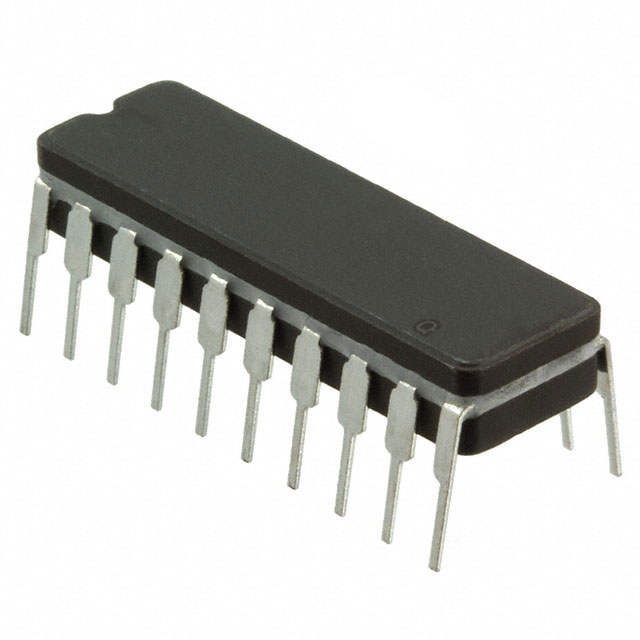

Renesas 54FCT245ATDB

Manufacturer No:

54FCT245ATDB

Manufacturer:

Renesas

Package:

CDIP

Description:

DUAL Buffers 20 Pins 8 Bit per Element CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

54FCT245ATDB information

Renesas 54FCT245ATDB technical specifications, attributes, parameters and parts with similar specifications to Renesas 54FCT245ATDB.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
CDIP

Number of Pins
20

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Additional Feature
WITH DIRECTION CONTROL

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Pin Count
20

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Elements
1

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
MILITARY

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
2

Propagation Delay
6.5 ns

Quiescent Current
1mA

Family
FCT

Logic Function
Inverting, Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Logic IC Type
BUS TRANSCEIVER

Number of Bits per Element
8

Prop. Delay@Nom-Sup
4.9 ns

High Level Output Current
48mA

Low Level Output Current
12mA

Control Type
COMMON CONTROL

Translation
N/A

Download datasheets and manufacturer documentation for Renesas 54FCT245ATDB.

Datasheets:

integrateddevicetechnology-54fct245atdb-datasheets-6362.pdf

54FCT245ATDB Overview

CDIP packages are used to implement buffer. Transceiver uses all 1 elements. 20 terminations are present in this ethernet transceiver, each of which serves a different purpose. A supply voltage of 5V is required. In the FCT family, the electric component belongs. The electric component includes 20 pins. There are Through Hole applications for it. There are 20 pins on it. 2 ports have been added to this bus transceiver. Each element is represented by 8 bits. In specific, buffer belongs to the Bus Driver/Transceivers family. 1mA is used by the electronic component in its quiescent stateThe power supply should be 5V . Users should apply 5V supply voltage to the lectronic component in order to run it safely and reliably in a circuit. To better serve the needs, it features WITH DIRECTION CONTROL. Under -55°C, it can operate. The ambient temperature should not exceed 125°C. Low-level mode outputs 12mA by default. High-level output mode allows 48mA of current to flow through the electronic component. In order for this electrical component to work properly, it should be operated at a voltage of at least 4.5V. It is rated 5.5V for maximum supply voltage. An IC with BUS TRANSCEIVER logic is also known as a BUS TRANSCEIVER digital buffer. Logical drivers powered by COMMON CONTROL control technology start up automatically.

54FCT245ATDB Features

Bus Driver/Transceivers
WITH DIRECTION CONTROL
High Level Output: 12mA
Low Level Output: 48mA
BUS TRANSCEIVER Logic IC
