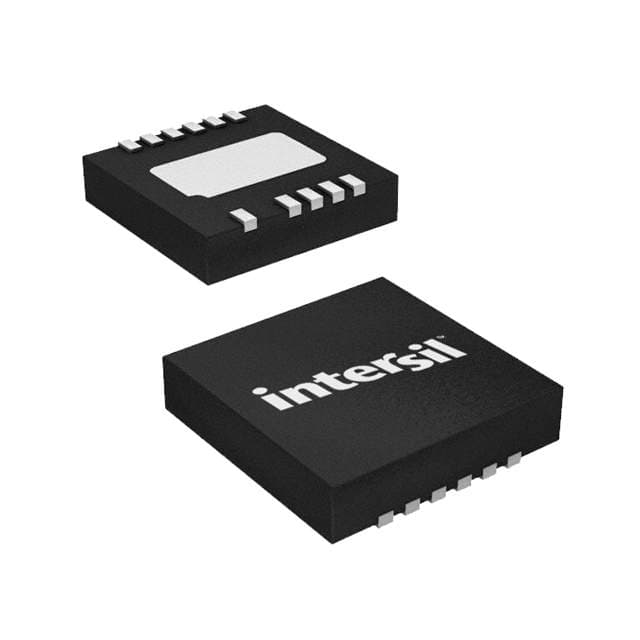

Renesas ISL6720AARZ-T

Manufacturer No:

ISL6720AARZ-T

Manufacturer:

Renesas

Package:

DFN

Description:

0.5mm PMIC 11 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6720AARZ-T information

Renesas ISL6720AARZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6720AARZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
DFN

Number of Pins
11

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
11

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
11

Qualification Status
Not Qualified

Input Voltage-Nom
12V

Power Supplies
17/100V

Temperature Grade
INDUSTRIAL

Current - Output
50mA

Voltage - Output
15V

Number of Regulators
3

Input Voltage (Max)
100V

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
1.7mA

Switcher Configuration
SINGLE

Min Current Limit
80mA

Length
4mm

Height Seated (Max)
1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6720AARZ-T.

Datasheets:

intersil-isl6720aarzt-datasheets-4068.pdf

ISL6720AARZ-T Overview

The Liner regulator IC is packaged in DFN case. On the Linear IC itself, there are 11 terminations. As part of this electrical component, 3 regulators are implemented. There is a current output of 50mA from this regulator IC. There are a total of 11 pins on this board. Chips have 11 pins. In this case, we have a typical Power Management Circuits component. You should use the regulator IC when the temperature is below 105°C. It is not possible to operate the chip below -40°C operating temperature. The IC regulator can generally output 15V volts on a system basis. This voltage regulator IC uses an analog IC called SWITCHING REGULATOR.

ISL6720AARZ-T Features

Power Management Circuits subtageroy
The maximum operating temperature of -40°C

ISL6720AARZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6720AARZ-T Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
