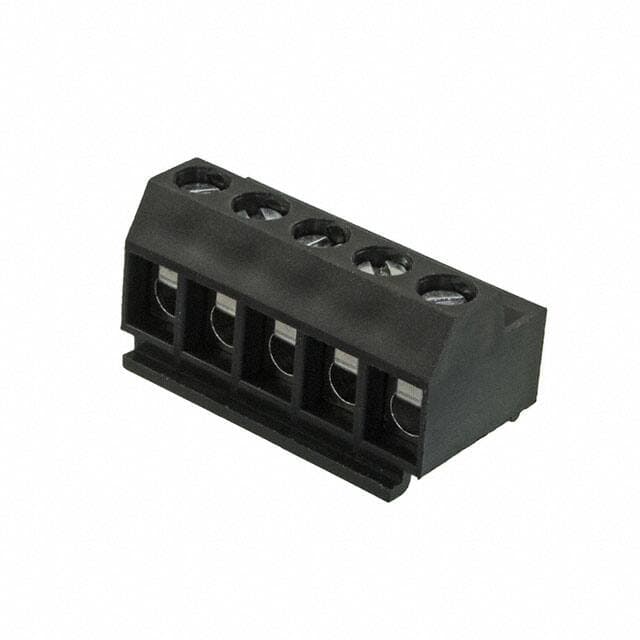

METZ CONNECT USA Inc. 31157105

Manufacturer No:

31157105

Manufacturer:

Package:

Description:

Bulk 0.197 5.00mm Black 1 Levels Panel Mount, Snap-In Plug for Unshrouded Header Polyamide (PA66), Nylon 6/6 Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

31157105 information

METZ CONNECT USA Inc. 31157105 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. 31157105.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Copper Alloy

Contact Plating
Nickel

Mounting Type
Panel Mount, Snap-In

Housing Material
Polyamide (PA66), Nylon 6/6

Operating Temperature
-40°C~105°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Type
Plug for Unshrouded Header

Number of Positions
5

Color
Black

Number of Rows
1

Gender
Female

Voltage - Rated
250V

Additional Feature
STANDARD: UL 94V-0, PA66

Pitch
0.197 5.00mm

Ingress Protection
IP20

Current Rating
13.5A

Termination Style
Screw - Leaf Spring, Wire Guard

Number of Levels
1

Wire/Cable Gauge
28 AWG

Contact Mating Finish
Tin

Voltage - UL
300V

Wire Gauge or Range - AWG
14-28 AWG

Current - UL
5A

Number of Ways
5

Safety Approval
CUL; SEV; UL

Plug Wire Entry
90°

Wire Gauge or Range - mm²
0.08-2.5mm2

Screw Size
M3

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. 31157105.

31157105 Overview

It's mounted Panel Mount, Snap-In.We use a Bulk case to package the product.There are also other features like STANDARD: UL 94V-0, PA66, to name a few.-40°C~105°C Operating Temperature is what the device runs at.The benefts of this part are similar to those of other Plug for Unshrouded Header products.

31157105 Features

31157105 Applications

There are a lot of METZ CONNECT USA Inc.
31157105 Terminal Blocks applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
