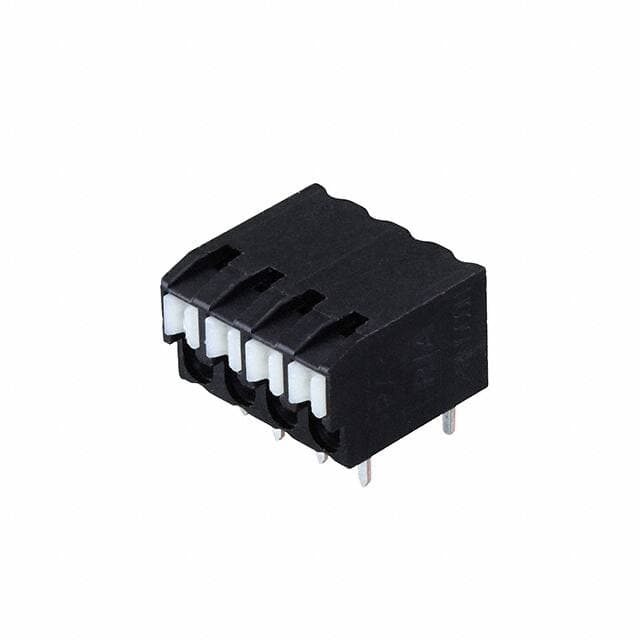

METZ CONNECT USA Inc. AST2230402

Manufacturer No:

AST2230402

Manufacturer:

Package:

Description:

0.138 3.50mm Black Tape & Reel (TR) Polyamide (PA6T), Nylon 6T Through Hole Horizontal with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-28 AWG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AST2230402 information

METZ CONNECT USA Inc. AST2230402 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. AST2230402.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Copper

Contact Plating
Tin

Mount
PCB

Mounting Type
Through Hole

Housing Material
Polyamide (PA6T), Nylon 6T

Contact Material - Plating
Copper Alloy - Tin Plated

Clamp Material - Plating
Steel

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Feature
Push Button Actuated

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Connector Type
PCB, Terminal Block

Number of Positions
4

Color
Black

Pitch
0.138 3.50mm

Current Rating
10A

Voltage - Rated AC
150V

Wire Gauge
16-28 AWG

Voltage
150V

Number of Levels
1

Wire/Cable Gauge
16 AWG

Mating Orientation
Horizontal with Board

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. AST2230402.

AST2230402 Overview

Packaging is PCB, Terminal Block.Through Hole is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.With its Push Button Actuated feature, it is more powerful in many ways.In this case, PCB mounts the part.The device is operating at -40°C~105°C Operating Temperature.

AST2230402 Features

AST2230402 Applications

There are a lot of METZ CONNECT USA Inc.
AST2230402 Terminal Blocks applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
