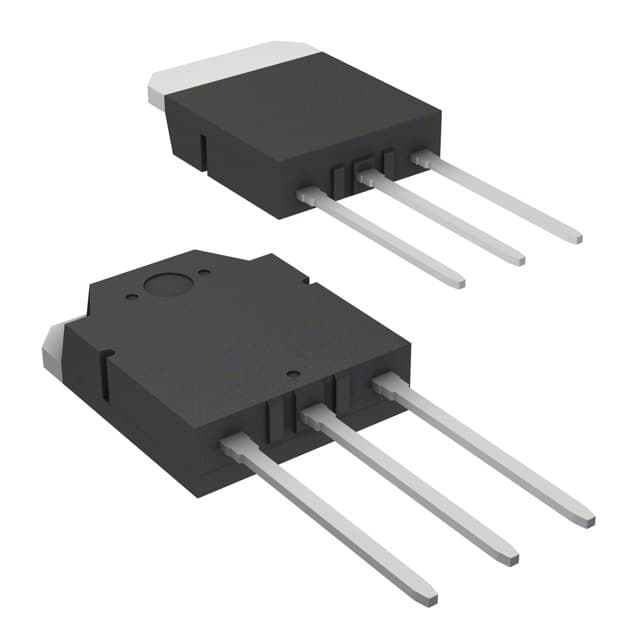

Renesas 2SK1340-E
Manufacturer No:
2SK1340-E
Manufacturer:
Package:
TO-3P-3, SC-65-3
Description:
MOSFET (Metal Oxide) N-Channel Tube 4 ? @ 3A, 10V ±30V 740pF @ 10V 900V TO-3P-3, SC-65-3
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
2SK1340-E information
Renesas 2SK1340-E technical specifications, attributes, parameters and parts with similar specifications to Renesas 2SK1340-E.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Contact Plating
- Copper, Silver, Tin
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- TO-3P-3, SC-65-3
- Number of Pins
- 3
- Transistor Element Material
- SILICON
- Operating Temperature
- 150°C TJ
- Packaging
- Tube
- Published
- 2006
- JESD-609 Code
- e2
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 3
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Copper (Sn/Cu)
- Subcategory
- FET General Purpose Power
- Technology
- MOSFET (Metal Oxide)
- Terminal Position
- SINGLE
- Pin Count
- 4
- Number of Elements
- 1
- Configuration
- SINGLE WITH BUILT-IN DIODE
- Power Dissipation-Max
- 100W Tc
- Power Dissipation
- 100W
- Case Connection
- DRAIN
- Turn On Delay Time
- 15 ns
- FET Type
- N-Channel
- Transistor Application
- SWITCHING
- Rds On (Max) @ Id, Vgs
- 4 ? @ 3A, 10V
- Input Capacitance (Ciss) (Max) @ Vds
- 740pF @ 10V
- Current - Continuous Drain (Id) @ 25°C
- 5A Ta
- Rise Time
- 70ns
- Drain to Source Voltage (Vdss)
- 900V
- Drive Voltage (Max Rds On,Min Rds On)
- 10V
- Vgs (Max)
- ±30V
- Fall Time (Typ)
- 90 ns
- Turn-Off Delay Time
- 90 ns
- Continuous Drain Current (ID)
- 5A
- Gate to Source Voltage (Vgs)
- 30V
- Drain Current-Max (Abs) (ID)
- 5A
- Drain-source On Resistance-Max
- 4Ohm
- DS Breakdown Voltage-Min
- 900V
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas 2SK1340-E.
ConflictMineralStatement:
2SK1340-E Overview
An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 740pF @ 10V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 5A continuous drain current (ID).Drain current refers to the maximum continuous current a device can conduct, and it is 5A.Input capacitance must be charged before drain current conduction can begin, so the turn-off delay time is 90 ns.Before drain current conduction begins, the device's input capacitance must be charged, so the delay time is 15 ns.An FET transistor's gate-source voltage, VGS, indicates how much voltage is applied across the transistor's gate-source terminal and it can range from 30V to 1.Normal operation requires that the DS breakdown voltage remain above 900V.For this transistor to work, a voltage 900V is required between drain and source (Vdss).Using drive voltage (10V), this device contributes to a reduction in overall power consumption.
